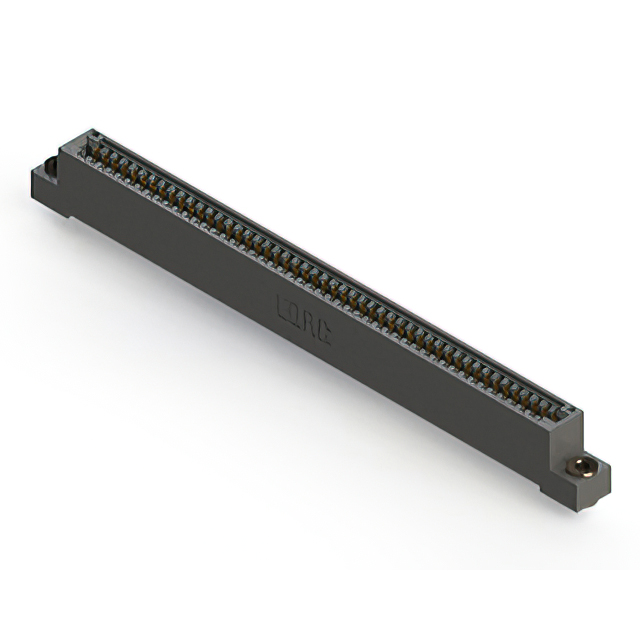

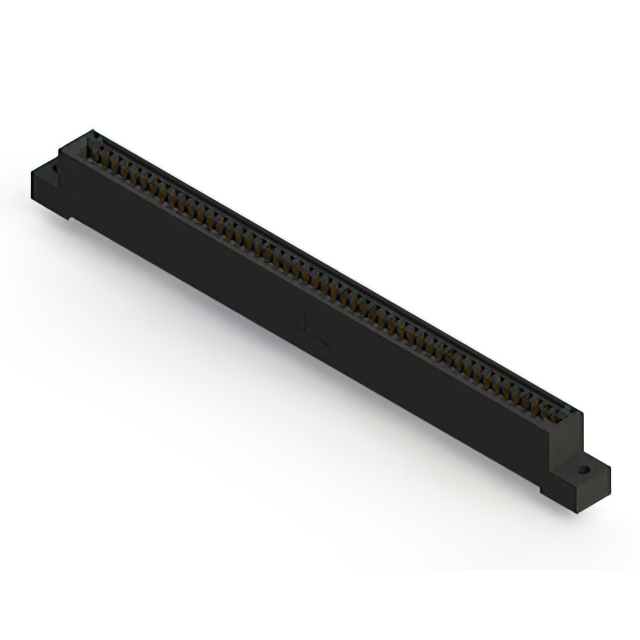

895-049 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SINGLE FML 49POS 0.100
...
| Part | Termination Rows | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Color | Termination | Number of Rows | Pitch | Pitch | Flange Feature | Contact Finish | Gender | Number of Positions/Bay/Row | Number of Positions | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | 4-40 Threaded Insert Top Mount Opening | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Cantilever | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Wire Wrap | 1 | 0.1 " | 2.54 mm | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder Eyelet(s) | 1 | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Wire Wrap | 1 | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Cantilever | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Cantilever | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Solder | 1 | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | Gold | Female | 49 | 49 | Non Specified - Single Edge | Single | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Cantilever | 0.116 " | 2.95 mm |
