FNN.2F Series
Manufacturer: LEMO
Beta
⌘K

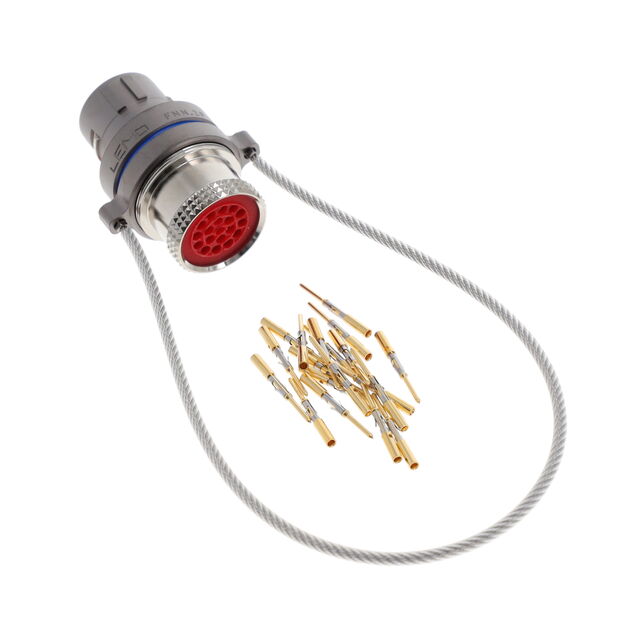

CONN PLUG MALE 19POS GOLD CRIMP
| Part | Shell Size - Insert | Insert Material | Color | Primary Material | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shielding | Termination | Cable Opening | Cable Opening | Mounting Type | Contact Finish - Mating | Ingress Protection | Features | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Shell Material | Orientation | Contact Material | Applications | Material Flammability Rating | Fastening Type | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 319 | Polyetheretherketone (PEEK) | Gray | Metal | Nickel | -15 °C | 200 °C | Plug Male Pins | Shielded | Crimp | 0.551 " | 14 mm | Free Hanging (In-Line) | Gold | IP67 - Dust Tight Waterproof | Lanyard | 39.4 µin | 1 µm | Aluminum Alloy | N (Normal) | Brass | Aerospace | UL94 V-0 | Push-Pull | 5 A | 19 |
LEMO |
