AR 06-HZL Series
Manufacturer: Assmann WSW Components
Beta
⌘K

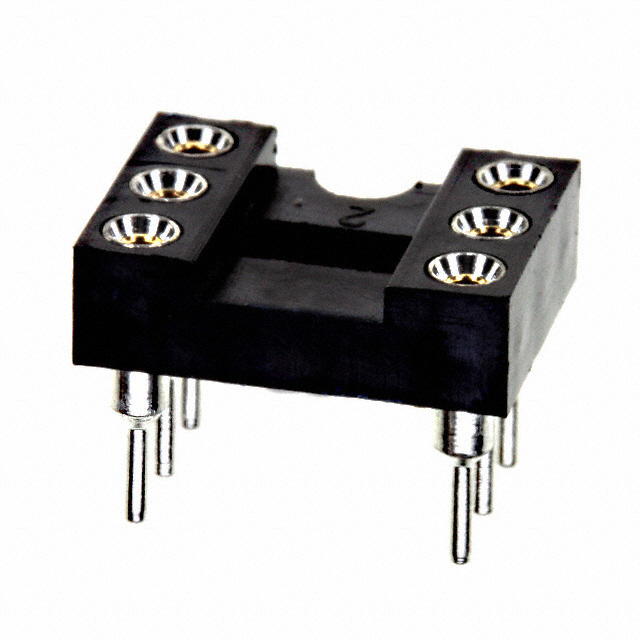

CONN IC DIP SOCKET 6POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Finish - Mating | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Type | Type | Type | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Contact Material - Post | Housing Material | Mounting Type | Pitch - Mating | Pitch - Mating | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | UL94 V-0 | 4 mOhm | 3 A | Gold | 0.1 in | 2.54 mm | 3 positions or pins | 2 | 6 | 7.62 mm | 0.3 in | DIP | Beryllium Copper | -40 C | 105 ░C | 0.25 µm | 10 µin | Tin | Beryllium Copper | Polyester Thermoplastic | Through Hole | 0.1 " | 2.54 mm | Solder | 200 µin | 5.08 µm | Open Frame |
