CR6FM-12 Series

Catalog

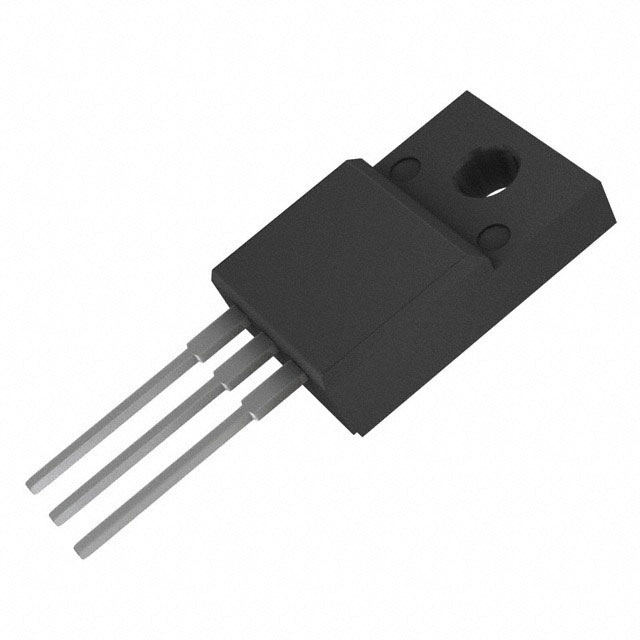

SCR 600V 9.4A TO220FPA

Part	Current - On State (It (RMS)) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	Supplier Device Package	Current - On State (It (AV)) (Max) [Max]	Package / Case	Current - Off State (Max) [Max]	SCR Type	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Renesas Electronics Corporation CR6FM-12B#BH0	9.4 A	1.7 V	TO-220FPA	6 A	TO-220-3 Full Pack	2 mA	Standard Recovery	600 V	1 V	10 mA	Through Hole	90 A	15 mA	150 °C	-40 °C
