HLMP-6505 Series

Catalog

LED GREEN CLEAR AXIAL T/H

Part	Lens Transparency	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Wavelength - Dominant	Configuration	Mounting Type	Lens Color	Color	Height (Max) [z]	Viewing Angle	Supplier Device Package	Lens Size [diameter]	Current - Test	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Style
Broadcom Limited HLMP-6505-L001S	Clear	40 mcd	2.08 mm	2.21 mm	565 nm	569 nm	Standard	Through Hole	Colorless	Green	2.92 mm	28 °	Axial	1.78 mm	10 mA	Axial Right Angle Bend	2.54 mm	2.1 V	Round with Domed Top

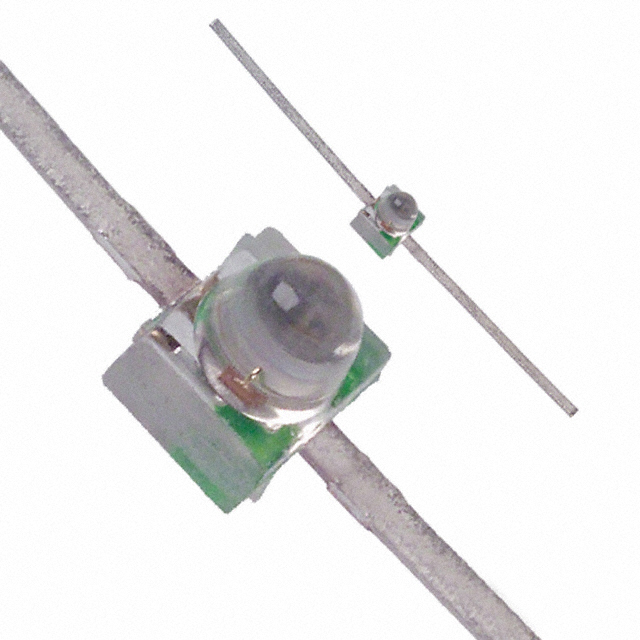

Broadcom Limited HLMP-6505	Clear	40 mcd	2.08 mm	2.21 mm	565 nm	569 nm	Standard	Axial Through Hole	Colorless	Green	2.92 mm	28 °	Axial	1.91 mm Dia	10 mA	Axial Flat Leads		2.1 V	Round with Domed Top
Broadcom Limited HLMP-6505-L001L	Clear	40 mcd	2.08 mm	2.21 mm	565 nm	569 nm	Standard	Through Hole	Colorless	Green	2.92 mm	28 °	Axial	1.78 mm	10 mA	Axial Right Angle Bend	2.54 mm	2.1 V	Round with Domed Top
Broadcom Limited HLMP-6505-NP011	Clear		2.09 mm	2.21 mm	655 nm	640 nm		Surface Mount		Red	2.92 mm	90 °	SMD	1.91 mm Dia	10 mA	2-SMD Flat Leads		1.6 V	Round with Flat Top

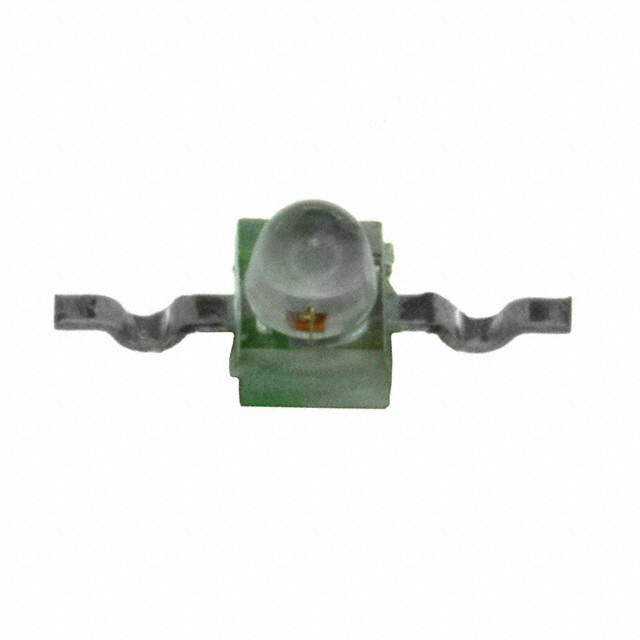

Broadcom Limited HLMP-6505-L0021	Clear	40 mcd	2.08 mm	2.21 mm	565 nm	569 nm	Standard	Surface Mount	Colorless	Green	2.92 mm	28 °	Yoke Lead	1.78 mm	10 mA	2-SMD Yoke Bend		2.1 V	Round with Domed Top

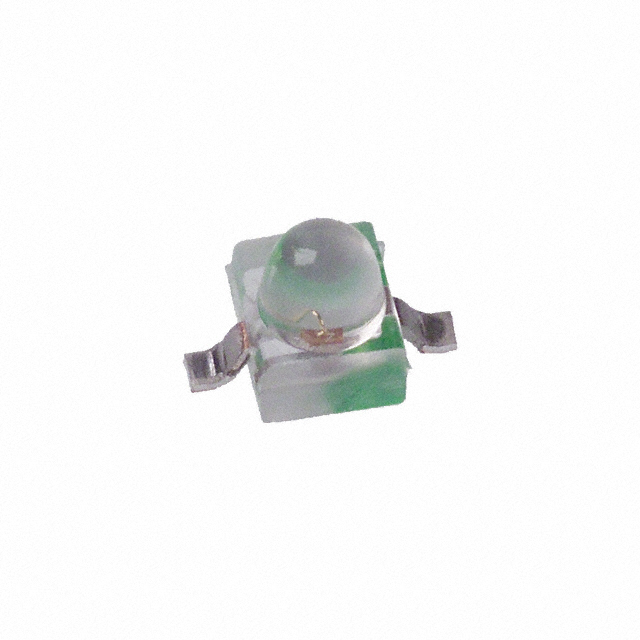

Broadcom Limited HLMP-6505-L0011	Clear	40 mcd	2.08 mm	2.21 mm	565 nm	569 nm	Standard	Surface Mount	Colorless	Green	2.92 mm	28 °	Gull Wing	1.91 mm Dia	10 mA	2-SMD Gull Wing		2.1 V	Round with Domed Top
