09161083 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HAN DD SERIES, INSERT, 108+PE CONTACTS, 24B, RECEPTACLE, CRIMP SOCKET

Part	Color	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Size	Connector Type	Contact Type	Voltage Rating	Gender	Termination Style	Current Rating (Amps)	Number of Positions
HARTING 09161083101	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	108+Ground	24 B	Insert without Contacts	Han® D	600 V	Female	Crimp	10 A

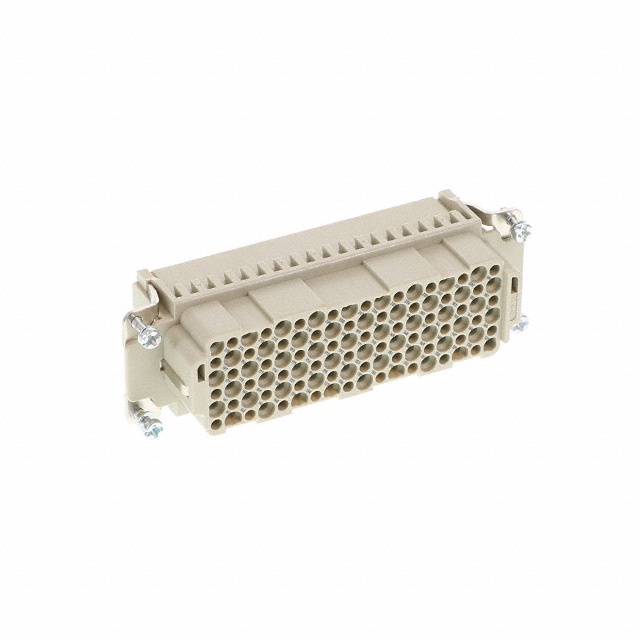

HARTING 09161083111	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	108+Ground	24 B	Insert without Contacts	Han® D	600 V	Female	Crimp	10 A
HARTING 09161083017								Insert						108

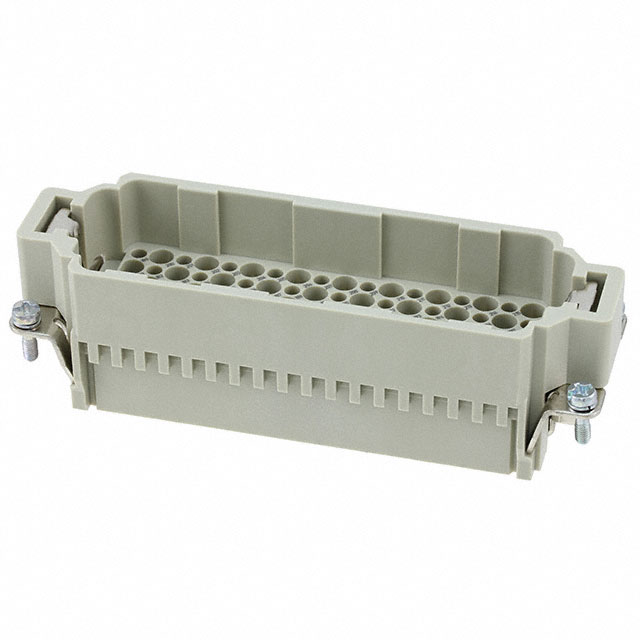

HARTING 09161083011	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	108+Ground	24 B	Insert without Contacts	Han® D	600 V	Male	Crimp	10 A

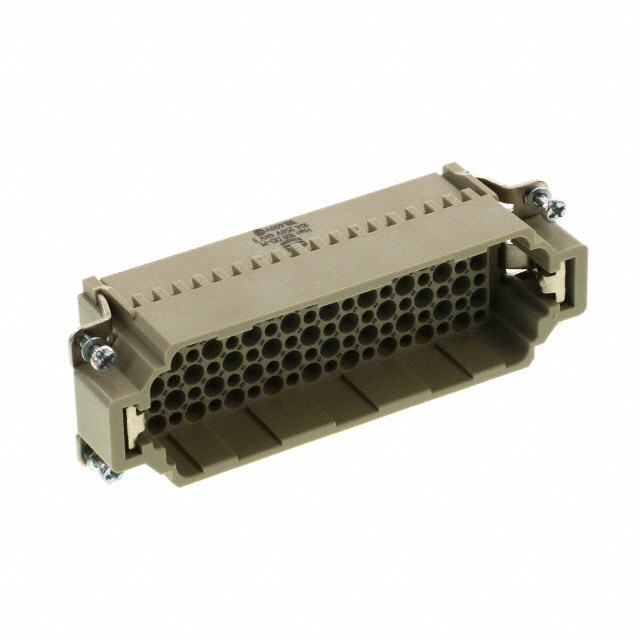

HARTING 09161083001	Gray	Polycarbonate (PC)	UL94 V-0	125 °C	-40 C	108+Ground	24 B	Insert without Contacts	Han® D	600 V	Male	Crimp	10 A
HARTING 09161083007								Insert						108
HARTING 09161083018								Insert						108
HARTING 09161083117								Insert without Contacts				Crimp		108
HARTING 09161083118								Insert						108
