203563 Series

Manufacturer: Molex

Catalog

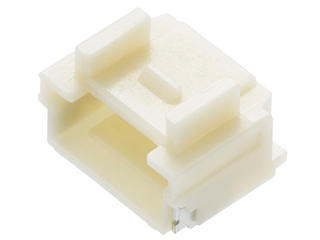

1.00MM PITCH, PICO-CLASP PCB HEADER, SINGLE ROW, RIGHT-ANGLE, SURFACE MOUNT, 0.76ΜM GOLD PLATED, OUTER POSITIVE LOCK, 4 CIRCUITS, NATURAL

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Material Flammability Rating	Number of Rows	Contact Shape	Fastening Type	Mounting Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Material	Style	Insulation Color	Shrouding	Contact Finish - Post	Contact Type	Termination	Features	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Molex 2035630405	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	0.185 in	4.7 mm	All	Header	Gold	UL94 V-0	1	Rectangular	Locking Ramp	Right Angle Surface Mount	Nylon Polyamide (PA)	-40 C	105 ░C	50 V	4	1 mm	0.039 in	Phosphor Bronze	Board to Cable/Wire	Natural	Shrouded - 4 Wall	Gold	Male Pin	Solder	Solder Retention	Varies by Wire Gauge	0.76 Ám	30 Áin
Molex 2035630505	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	0.185 in	4.7 mm	All	Header	Gold	UL94 V-0	1	Rectangular	Locking Ramp	Right Angle Surface Mount	Nylon Polyamide (PA)	-40 C	105 ░C	50 V	5	1 mm	0.039 in	Phosphor Bronze	Board to Cable/Wire	Natural	Shrouded - 4 Wall	Gold	Male Pin	Solder	Solder Retention	Varies by Wire Gauge	0.76 Ám	30 Áin
Molex 2035630305	Automotive General Purpose Industrial Medical	2 µin	0.051 µm	0.185 in	4.7 mm	All	Header	Gold	UL94 V-0	1	Rectangular	Locking Ramp	Right Angle Surface Mount	Nylon Polyamide (PA)	-40 C	105 ░C	50 V		1 mm	0.039 in	Phosphor Bronze	Board to Cable/Wire	Natural	Shrouded - 4 Wall	Gold	Male Pin	Solder	Solder Retention	Varies by Wire Gauge	0.76 Ám	30 Áin
