842-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 33POS 0.100

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Contact Finish	Mounting Type	Termination	Number of Positions/Bay/Row	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Gender	Number of Positions [custom]	Contact Type	Color	Card Type	Contact Material	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 842-033-541-102	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Wire Wrap	33	1	125 °C	-40 C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-033-542-112	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Wire Wrap	33	1	125 °C	-40 C	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-033-541-104	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Wire Wrap	33	1	125 °C	-40 C	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

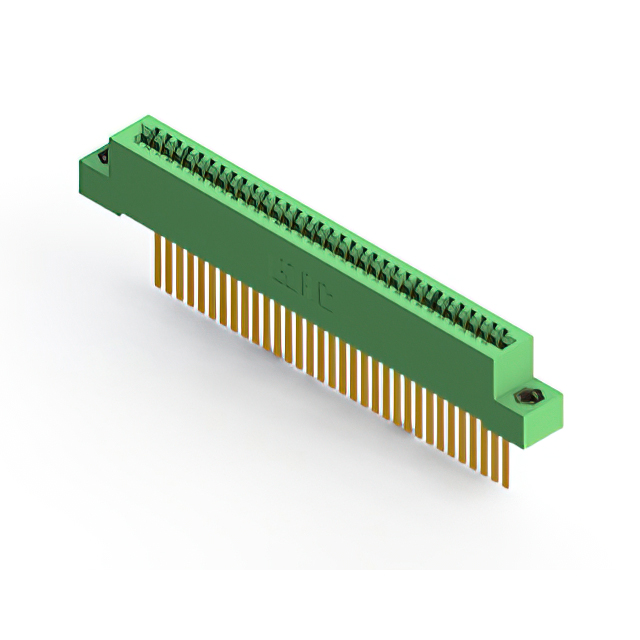

EDAC Inc. 842-033-544-108	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Wire Wrap	33	1	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-033-521-108	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Solder	33	1	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

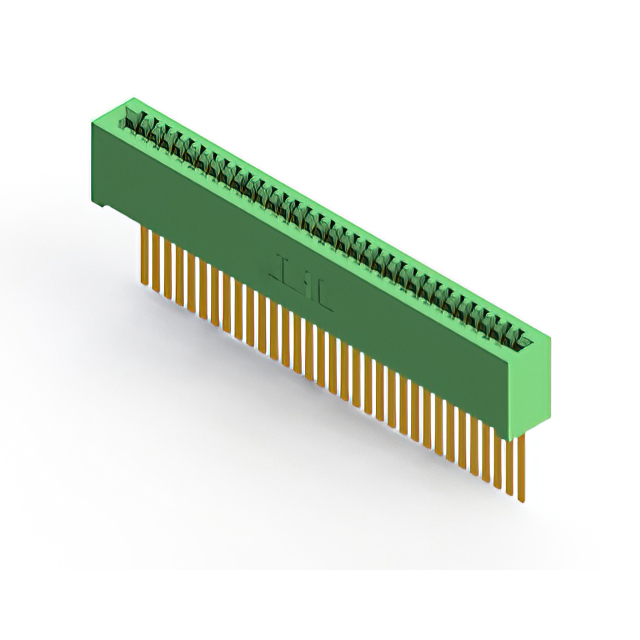

EDAC Inc. 842-033-544-101	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Wire Wrap	33	1	125 °C	-40 C				0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

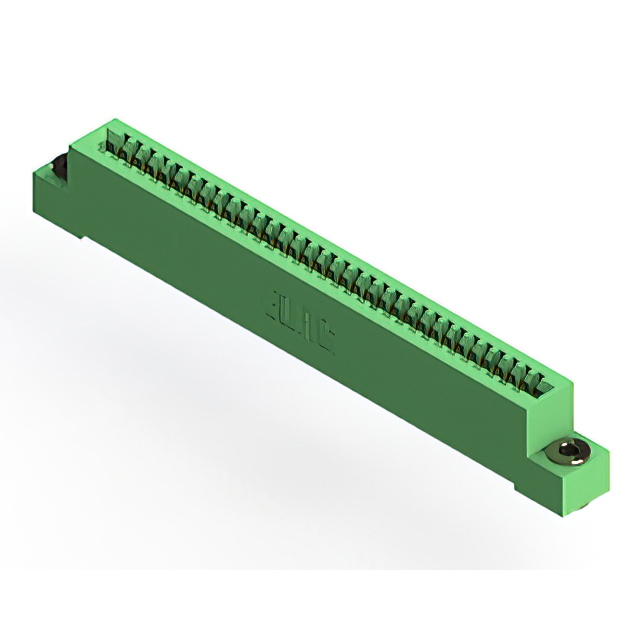

EDAC Inc. 842-033-524-103	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Solder	33	1	125 °C	-40 C	Floating Bobbin Flush Mount	2.95 mm	0.116 "	0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

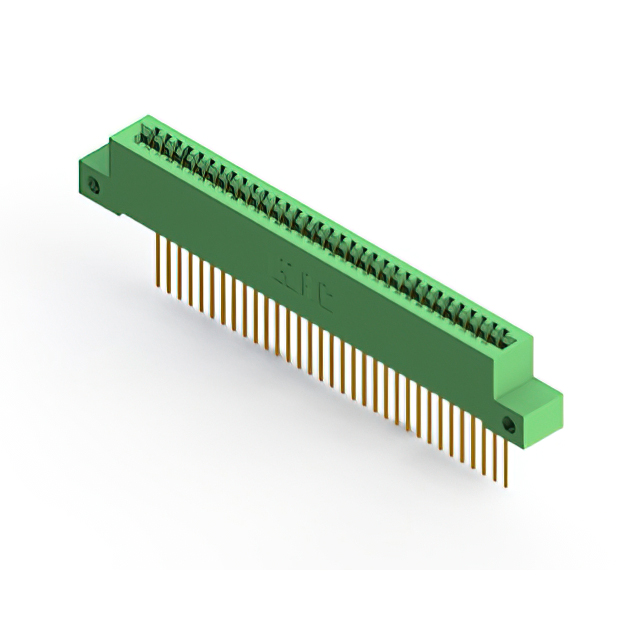

EDAC Inc. 842-033-541-112	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Through Hole	Wire Wrap	33	1	125 °C	-40 C	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

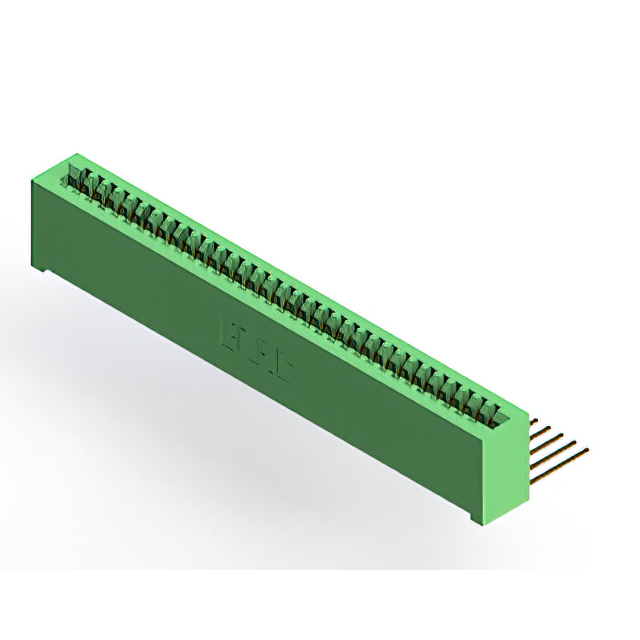

EDAC Inc. 842-033-559-101	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Right Angle Through Hole	Solder	33	1	125 °C	-40 C				0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm

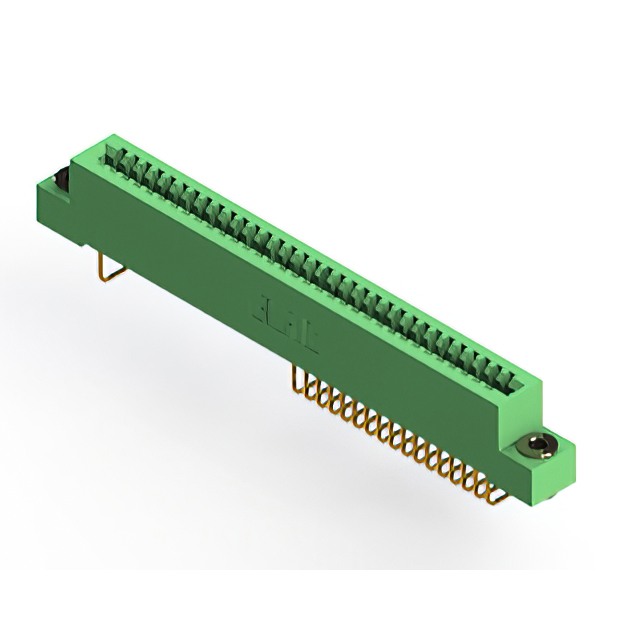

EDAC Inc. 842-033-558-103	1	Diallyl Phthalate (DAP)	0.1 "	2.54 mm	Gold	Right Angle Through Hole	Solder	33	1	125 °C	-40 C	Floating Bobbin Flush Mount	2.95 mm	0.116 "	0.25 Ám	10 Áin	Single	Female	33	Cantilever	Green	Non Specified - Single Edge	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm
