24_TNC-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

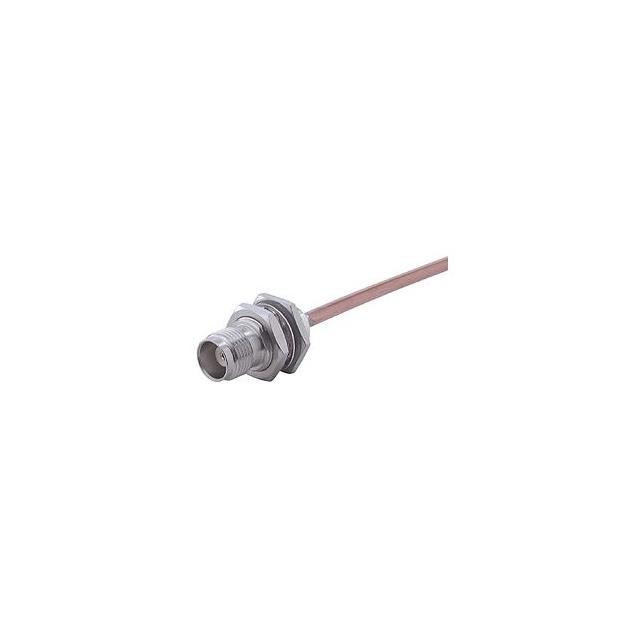

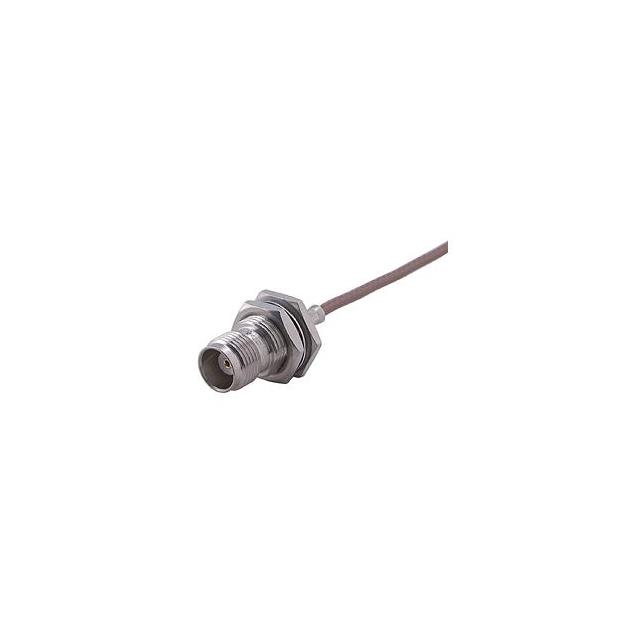

RF COAX CONN, TNC, BULKHEAD JACK, 50 OHM ROHS COMPLIANT: YES
| Part | Center Contact Plating | Dielectric Material | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Impedance | Shield Termination | Number of Ports | Frequency - Max [Max] | Center Contact Material | Housing Color | Fastening Type | Mounting Type | Connector Style | Connector Type | Contact Termination | Mounting Feature | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | 500 | -65 ░C | 165 °C | Brass | White Bronze | 50 Ohms | Crimp | 1 | 15 GHz | Beryllium Copper | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Crimp | Bulkhead - Front Side Nut | ||
 Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | 500 | -65 ░C | 165 °C | Brass | White Bronze | 50 Ohms | Crimp | 1 | 11 GHz | Beryllium Copper Brass | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Crimp | Bulkhead - Front Side Nut | RD-316 | |
 Huber+Suhner, Inc. | ||||||||||||||||||||||
Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | 500 | -65 ░C | 165 °C | Brass | White Bronze | 50 Ohms | Crimp | 1 | 11 GHz | Beryllium Copper | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Crimp | Bulkhead - Front Side Nut | RG-58 | |
Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | 500 | -65 ░C | 165 °C | Brass | White Bronze | 50 Ohms | Crimp | 1 | 11 GHz | Beryllium Copper | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Crimp | Bulkhead - Front Side Nut | 188 316 RG-174 | |
 Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 V | 500 | -65 ░C | 165 °C | Brass | White Bronze | 50 Ohms | Solder | 1 | 11 GHz | Beryllium Copper | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Solder | Bulkhead - Front Side Nut | RG-141 | |
 Huber+Suhner, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 500 V | 500 | -65 ░C | 165 °C | Brass | White Bronze | 50 Ohms | Crimp | 1 | 11 GHz | Bronze | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Crimp | Bulkhead - Front Side Nut | ||
Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Tri-Metal | 50 Ohms | Clamp | 1 | 11 GHz | Beryllium Copper | Silver | Threaded | Panel Mount | TNC | Female Socket Jack | Solder | Bulkhead | RG-178 | 196 |
