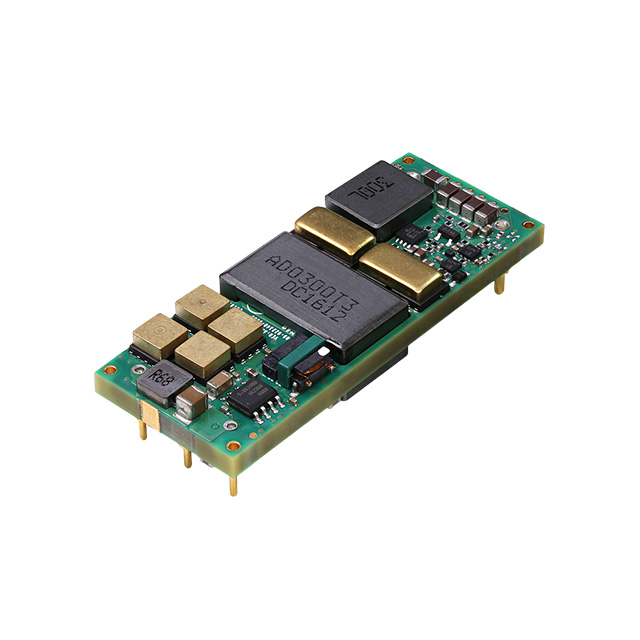

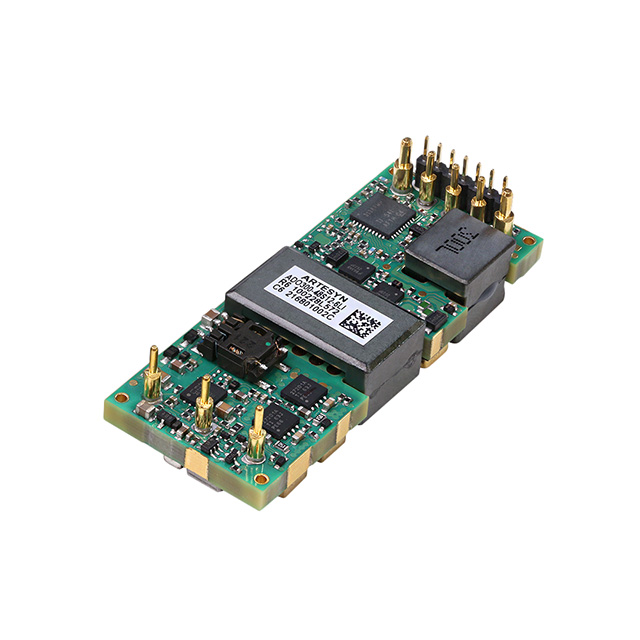

ADO300 Series

Catalog

DC DC CONVERTER 11.77V 306W

Part	Applications	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Control Features	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Package / Case	Mounting Type	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [z]	Size / Dimension [y]
ARTESYN / Advanced Energy ADO300-48S12-6LI	ITE (Commercial)	306 W	36 V	1	Active Low Enable	11.77 V	26 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm	23.2 mm	2.31 "	11.2 mm	0.44 in	0.91 in	95.2 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital
ARTESYN / Advanced Energy ADO300-48S05PB-6L	ITE (Commercial)	300 W	36 V	1	Active High Enable	5 V	60 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm		2.31 "		0.53 in	0.91 in	94.6 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital	13.5 mm	23.2 mm
ARTESYN / Advanced Energy ADO300-48S05-6L	ITE (Commercial)	300 W	36 V	1	Active Low Enable	5 V	60 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm	23.2 mm	2.31 "	11.2 mm	0.44 in	0.91 in	94.6 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital
ARTESYN / Advanced Energy ADO300-48S12B-6L	ITE (Commercial)	306 W	36 V	1	Active Low Enable	11.77 V	26 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm		2.31 "		0.53 in	0.91 in	95.2 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital	13.5 mm	23.2 mm
ARTESYN / Advanced Energy ADO300-48S3V3B-6L	ITE (Commercial)	198 W	36 V	1	Active Low Enable	3.3 V	60 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm		2.31 "		0.53 in	0.91 in	93 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital	13.5 mm	23.2 mm
ARTESYN / Advanced Energy ADO300-48S05B-6L	ITE (Commercial)	300 W	36 V	1	Active Low Enable	5 V	60 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm		2.31 "		0.53 in	0.91 in	94.6 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital	13.5 mm	23.2 mm
ARTESYN / Advanced Energy ADO300-48S12-6L	ITE (Commercial)	306 W	36 V	1	Active Low Enable	11.77 V	26 A	75 V	Eighth Brick	Eighth Brick	Through Hole	1.5 kV	58.7 mm	23.2 mm	2.31 "	11.2 mm	0.44 in	0.91 in	95.2 %	OCP OTP OVP Remote On/Off	85 °C	-40 C	Isolated Module Digital
