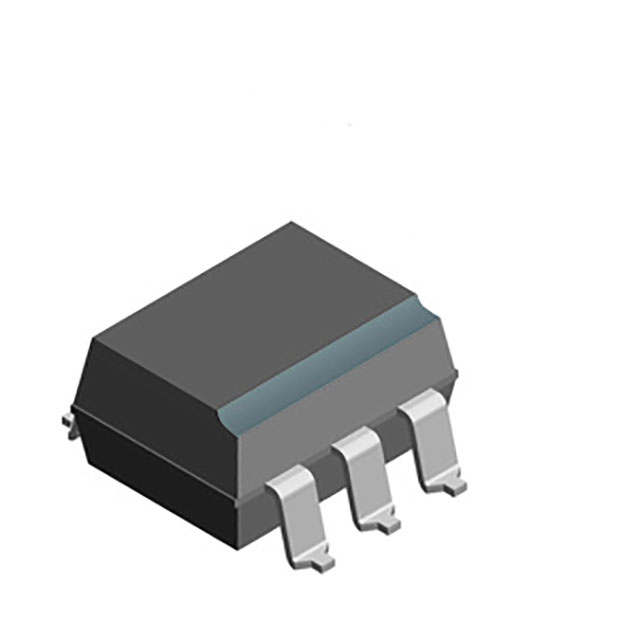

CNY17 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

OPTOISOLTR 5KV TRANSISTOR 6-DIP

Part	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Turn On / Turn Off Time (Typ)	Output Type	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Vce Saturation (Max) [Max]	Current - Output / Channel	Package / Case	Package / Case	Package / Case	Number of Channels	Current Transfer Ratio (Max)	Current Transfer Ratio (Min) [Min]	Voltage - Output (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Mounting Type
Vishay General Semiconductor - Diodes Division CNY17F-1X006	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	80 %	40 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17-2	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs		DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17F-2X001	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17-3X009T	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs		DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	200 %	100 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-2X006	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17-4X017	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs		DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	320 %	160 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-4X007T	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	320 %	160 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-1X019	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	80 %	40 %	70 V	60 mA	Surface Mount
Vishay General Semiconductor - Diodes Division CNY17F-2	6-DIP	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-DIP	0.3 in	7.62 mm	1	125 %	63 %	70 V	60 mA	Through Hole
Vishay General Semiconductor - Diodes Division CNY17F-3X017	6-SMD	1.39 V	2 µs	2 µs	2.3 µs 3 µs	1.81 mOhm	DC	-55 °C	110 °C	400 mV	50 mA	6-SMD Gull Wing			1	200 %	100 %	70 V	60 mA	Surface Mount
