FR02C023 Series
Manufacturer: JAE Electronics
Beta
⌘K

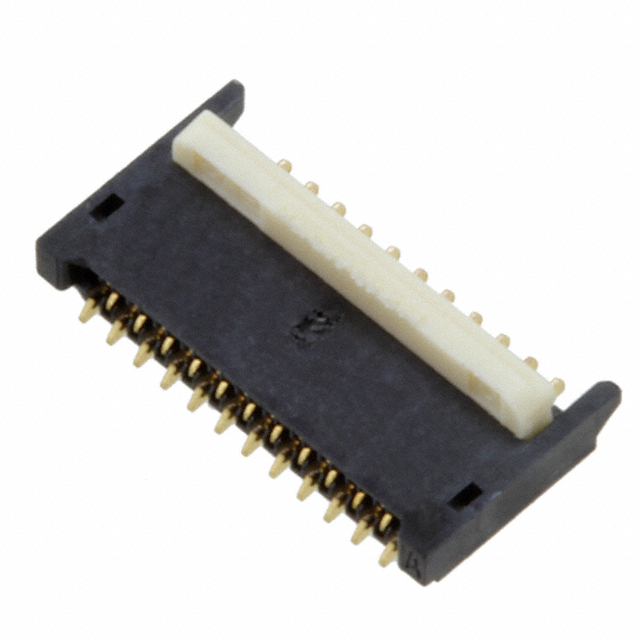

CONN FPC 23POS 0.2MM R/A
| Part | Housing Color | Current Rating (Amps) | Actuator Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Contact Finish | FFC, FCB Thickness [custom] | Pitch | Pitch | Locking Feature | Flat Flex Type | Actuator Material | Height Above Board | Height Above Board | Termination | Housing Material | Number of Positions | Cable End Type | Voltage Rating | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Black | 0.25 A | Natural | Phosphor Bronze | 85 °C | -40 C | Right Angle Surface Mount | Low Insertion Force (LIF) | Gold | 0.2 mm | 0.2 mm | 0.008 in | Backlock Flip Lock | FPC | Plastic | 0.032 " | 0.81 mm | Solder | Plastic | 23 | Tabbed or Tapered | 50 V | Contacts Top and Bottom |
