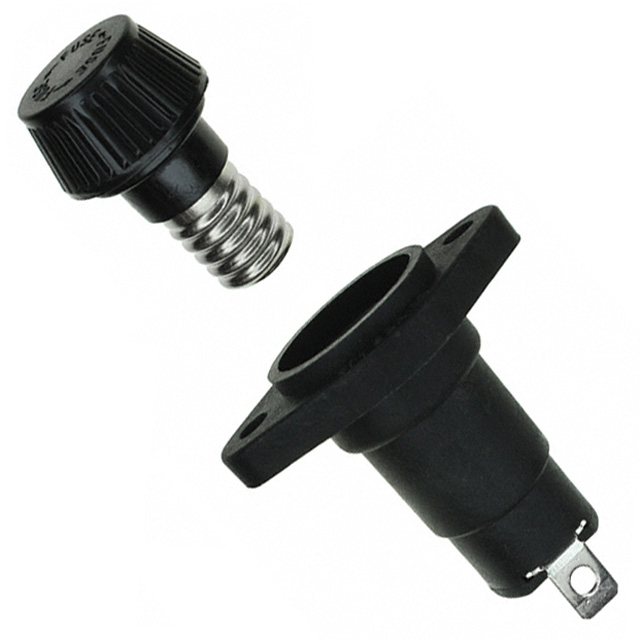

571RCCP Series

ACS 600V PANEL MNT HOLDER 30A CLASS CC

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

ACS 600V PANEL MNT HOLDER 30A CLASS CC

Part	Contact Finish	Voltage	Fuse Size [diameter]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [x]	Contact Material	Fuse Type	Termination Style	Current Rating (Amps)	Fuseholder Type	Number of Circuits	For Use With/Related Products
Littelfuse/Commercial Vehicle Products 05710RCCLXP	Tin	600 V	0.394 in	1.496 "	10 mm	38 mm	Brass	Cartridge	Quick Connect - 0.250" (6.3mm)	30 A	Holder	1	13/32" x 1-1/2" 5AG

Catalog

ACS 600V PANEL MNT HOLDER 30A CLASS CC

Description

Panel mount fuseholders are available for supplementary or Class CC branch circuit protection. Class CC fuses have a rejection feature on one end cap which mates with the rejection feature of Littelfuse Class CC fuse blocks and fuseholders to prevent the installation of fuses with lower voltage ratings or interrupting ratings. Watertight version must be front panel mounted.
