172708 Series

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 18 Circuit

Manufacturer: Molex

Catalog

Mini-Fit TPA2 Receptacle Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 18 Circuit

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Connector Type	Row Spacing	Row Spacing	Note	Number of Positions	Color	Pitch [x]	Pitch [x]	Insulation Material	Contact Termination	Number of Rows	Features	Number of Positions

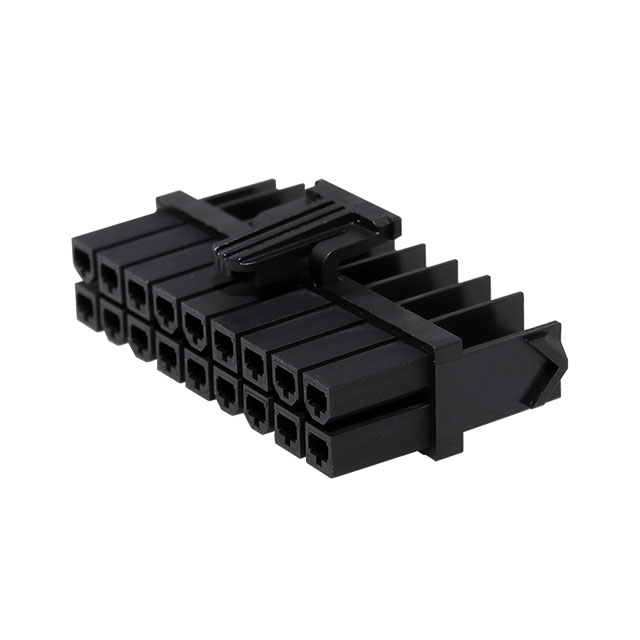

Molex 1727080018	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	18	Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2

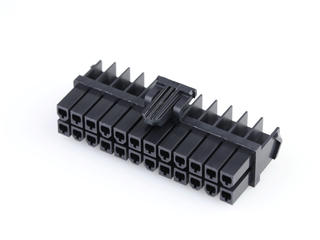

Molex 1727080024	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	24	Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2

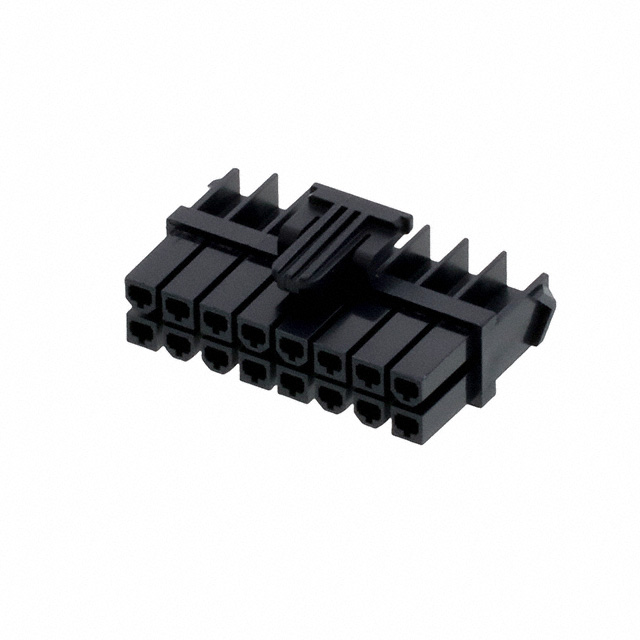

Molex 1727080116	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included		Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant	16

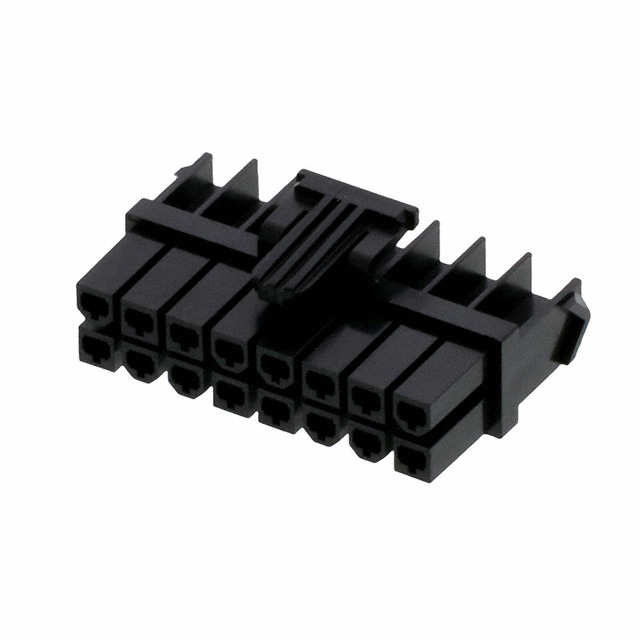

Molex 1727080016	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included		Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2		16
Molex 1727081002	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	2	Black			Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant

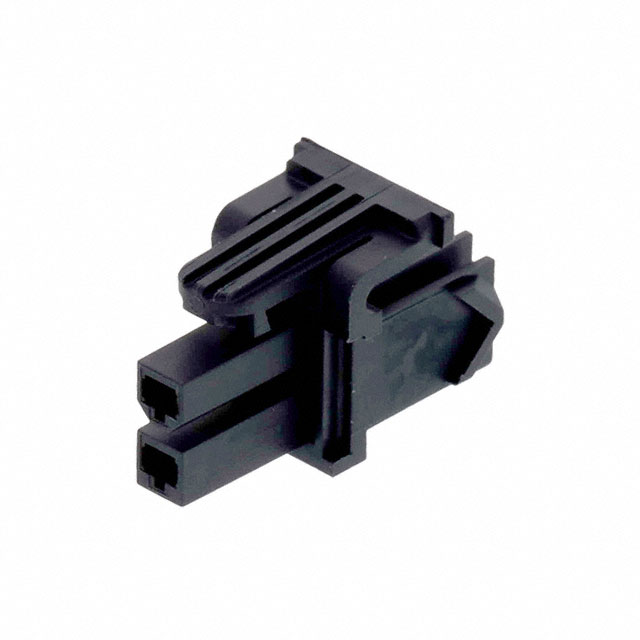

Molex 1727080102	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	2	Black			Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant

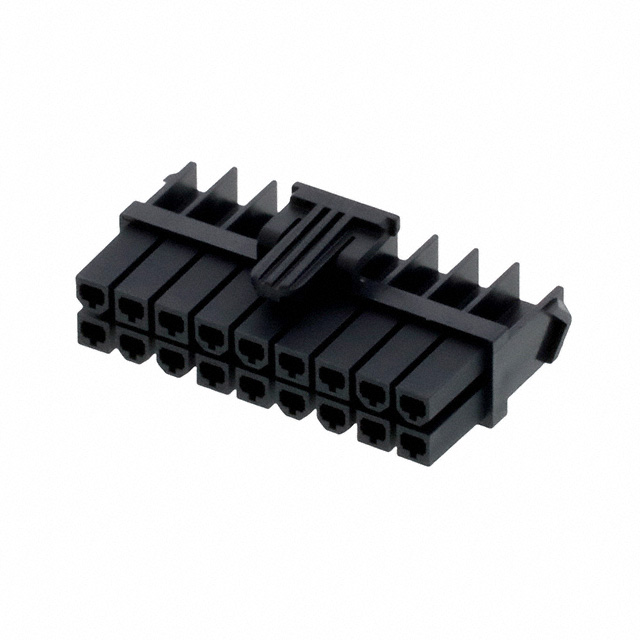

Molex 1727080118	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	18	Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant
Molex 1727080120	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	20	Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant

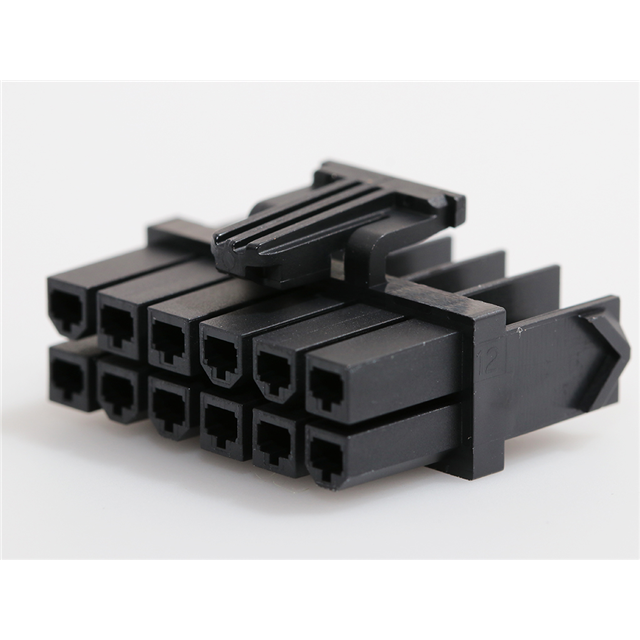

Molex 1727080112	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	12	Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant

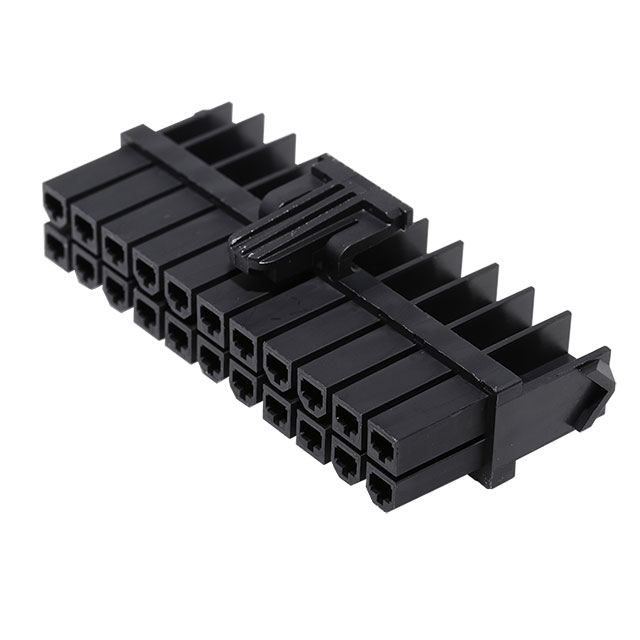

Molex 1727080122	Female Socket	-40 °C	105 ░C	Latch Lock	Free Hanging (In-Line)	Receptacle	4.2 mm	0.165 in	Contacts Not Included	22 positions	Black	4.2 mm	0.165 in	Nylon Polyamide (PA)	Crimp	2	Glow Wire Compliant
