104338 Series

Catalog

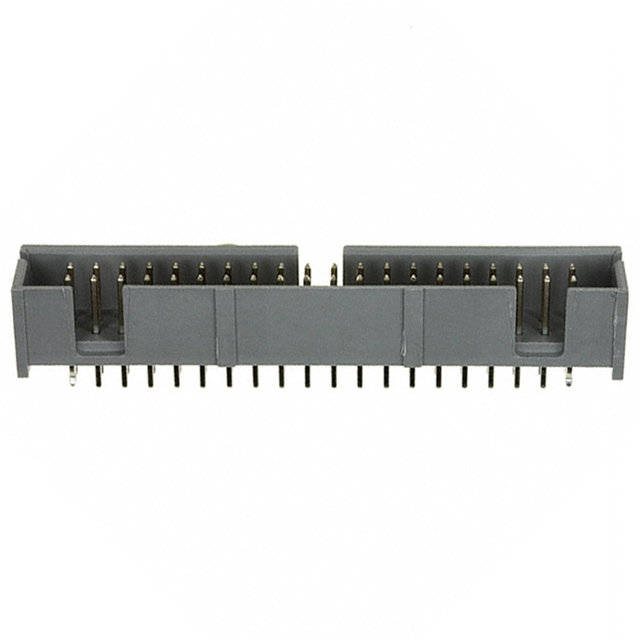

CONN HEADER VERT 40POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Mounting Type	Style	Material Flammability Rating	Number of Positions Loaded	Termination	Pitch - Mating	Pitch - Mating	Shrouding	Contact Material	Insulation Color	Current Rating (Amps)	Number of Rows [custom]	Number of Positions	Contact Finish - Post	Contact Finish - Mating
TE Connectivity AMP Connectors 104338-8	2.54 µm	100 µin	Header	Push-Pull	0.38 µm	15 µin	0.1 in	2.54 mm	Keying Slot	0.24 in	6.1 mm	Male Pin	9.78 mm	0.385 in	Square	105 ░C	-65 ░C	3.05 mm	0.12 in	Through Hole	Board to Cable/Wire	UL94 V-0	All	Kinked Pin Solder	0.1 "	2.54 mm	Shrouded - 4 Wall	Phosphor Bronze	Gray	1 A	2	40	Tin-Lead	Gold or Gold-Palladium
