AMI-M11D Series

Catalog

LINE FILTER 250VAC 3A CHASSIS

Part	Configuration	Voltage - Rated AC	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Termination Style	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Current
Altran Magnetics, LLC AMI-M11D-1-3-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	1.76 mH	Quick Connect	Single Phase	60 Hz	50 Hz	Chassis Mount	3 A
Altran Magnetics, LLC AMI-M11D-3-3-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	1.76 mH	Wire Leads	Single Phase	60 Hz	50 Hz	Chassis Mount	3 A
Altran Magnetics, LLC AMI-M11D-3-3-B-1	Single Stage	250 V	General Purpose	40 °C	-10 °C	1.76 mH	Wire Leads	Single Phase	60 Hz	50 Hz	Chassis Mount	3 A
Altran Magnetics, LLC AMI-M11D-3-1-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	1.86 mH	Wire Leads	Single Phase	60 Hz	50 Hz	Chassis Mount	1 A

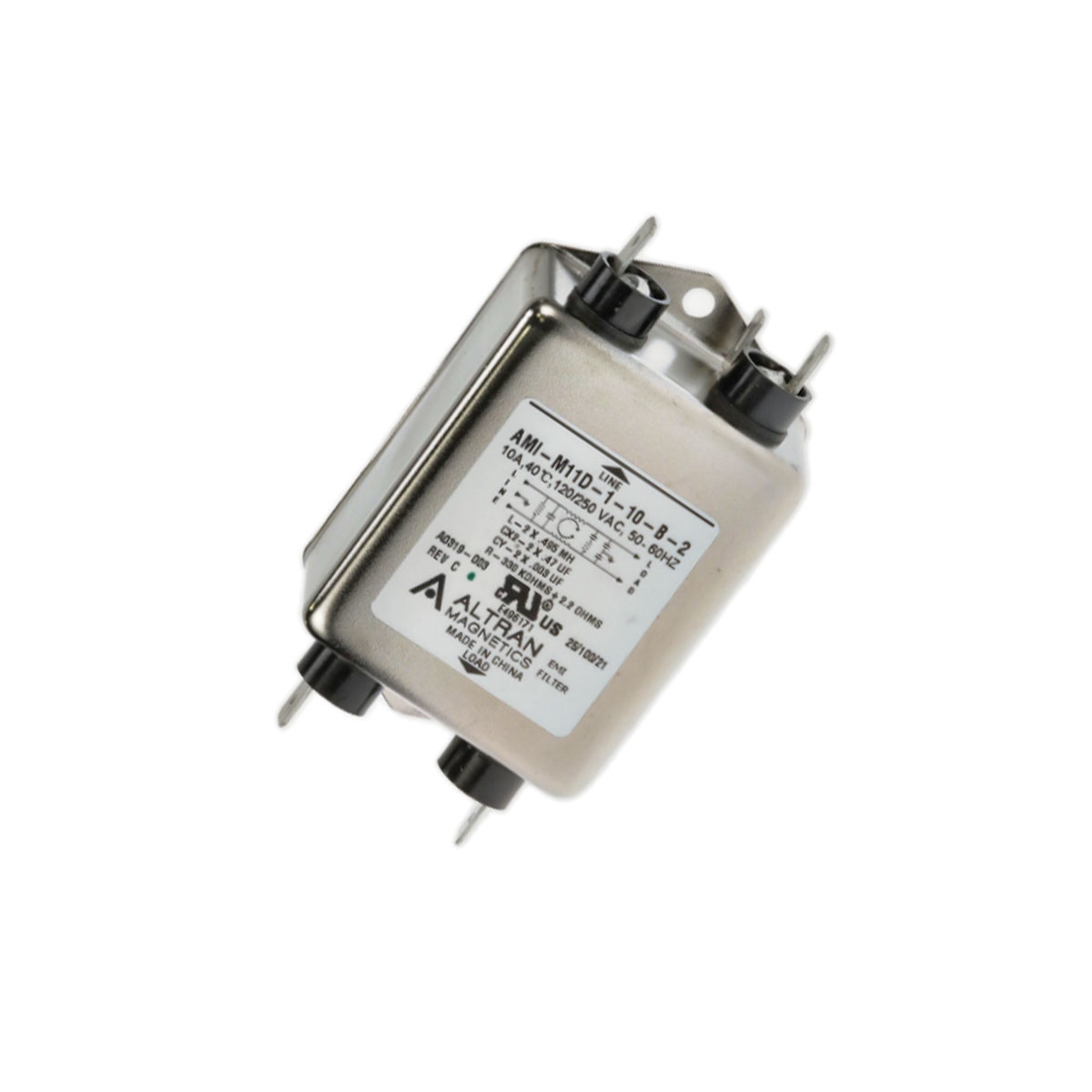

Altran Magnetics, LLC AMI-M11D-1-10-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	495 µH	Quick Connect	Single Phase	60 Hz	50 Hz	Chassis Mount	10 A
Altran Magnetics, LLC AMI-M11D-1-1-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	1.86 mH	Quick Connect	Single Phase	60 Hz	50 Hz	Chassis Mount	1 A
Altran Magnetics, LLC AMI-M11D-3-6-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	516 µH	Wire Leads	Single Phase	60 Hz	50 Hz	Chassis Mount	6 A
Altran Magnetics, LLC AMI-M11D-3-1-B-1	Single Stage	250 V	General Purpose	40 °C	-10 °C	1.86 mH	Wire Leads	Single Phase	60 Hz	50 Hz	Chassis Mount	1 A

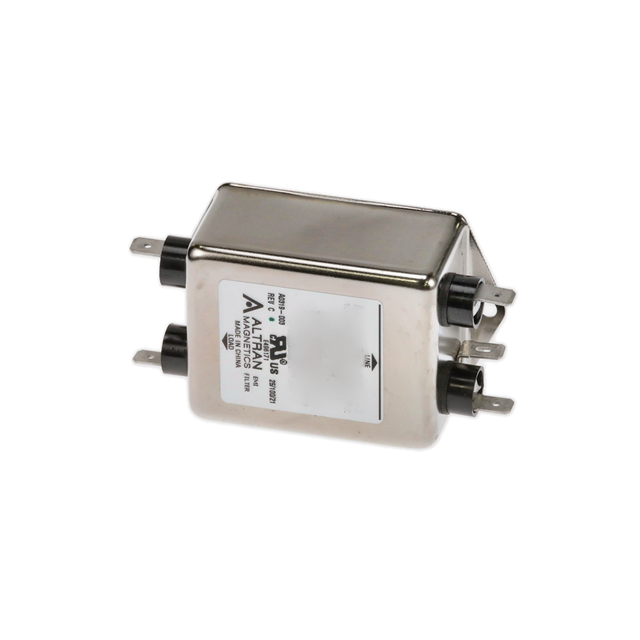

Altran Magnetics, LLC AMI-M11D-1-20-B-2	Single Stage	250 V	General Purpose	40 °C	-10 °C	540 µH	Quick Connect	Single Phase	60 Hz	50 Hz	Chassis Mount	20 A
Altran Magnetics, LLC AMI-M11D-3-10-B-1	Single Stage	250 V	General Purpose	40 °C	-10 °C	495 µH	Wire Leads	Single Phase	60 Hz	50 Hz	Chassis Mount	10 A
