L177DFE09 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

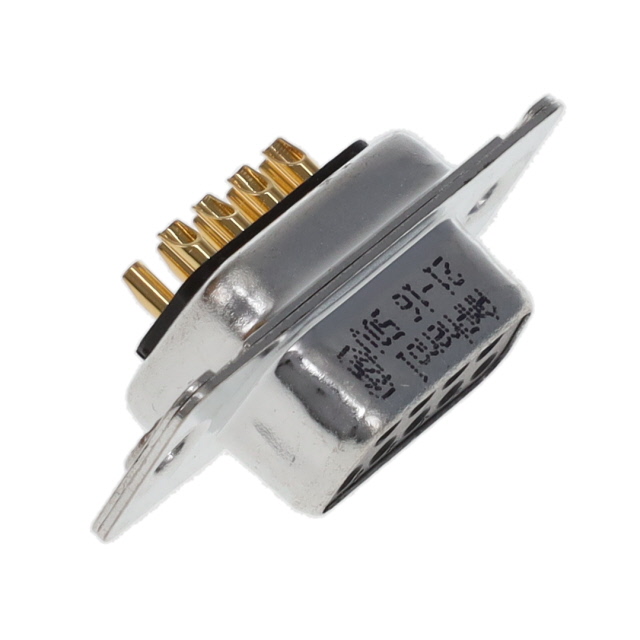

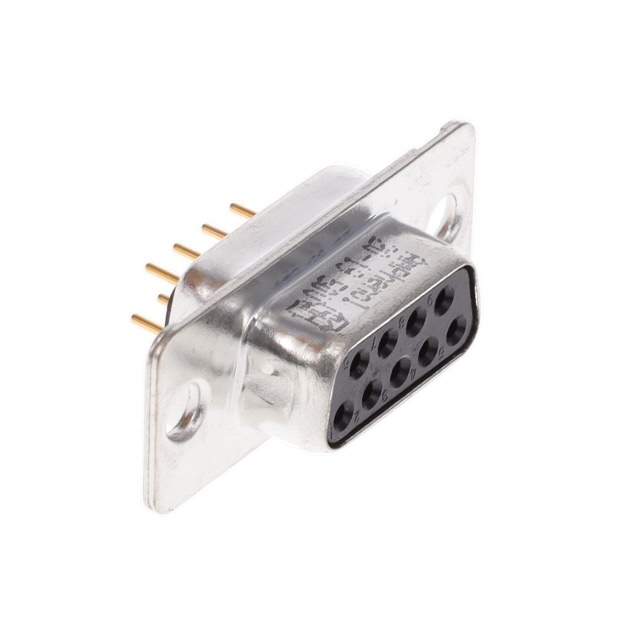

CONN D-SUB RCPT 9POS PNL MNT
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Connector Style | Mounting Type | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Type | Contact Finish | Material Flammability Rating | Current Rating (Amps) | Number of Rows [custom] | Termination | Backset Spacing | Backset Spacing | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | ||||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Wire Wrap | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | 0.319 in | 8.1 mm | Mounting Brackets |
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | 0.319 in | 8.1 mm | Mounting Brackets |
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | 0.319 in | 8.1 mm | Board Lock Mounting Brackets |
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | 0.406 in | 10.3 mm | Mounting Brackets |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | |||
Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder | 0.319 in | 8.1 mm | Mounting Brackets |
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Copper Alloy | -55 C | 125 °C | 300 VDC | Black | D-Sub | Panel Mount Through Hole | Receptacle Female Sockets | 1 | DE E | 9 | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Signal | Gold | UL94 V-0 | 7.5 A | 2 | Solder |
