628-W25 Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB RCPT 25POS VERT SLDR

Part	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Finish	Mounting Type	Ingress Protection	Contact Type	Flange Feature	Connector Type	Number of Positions	Shell Material, Finish	Material Flammability Rating	Current Rating (Amps)	Connector Style	Features

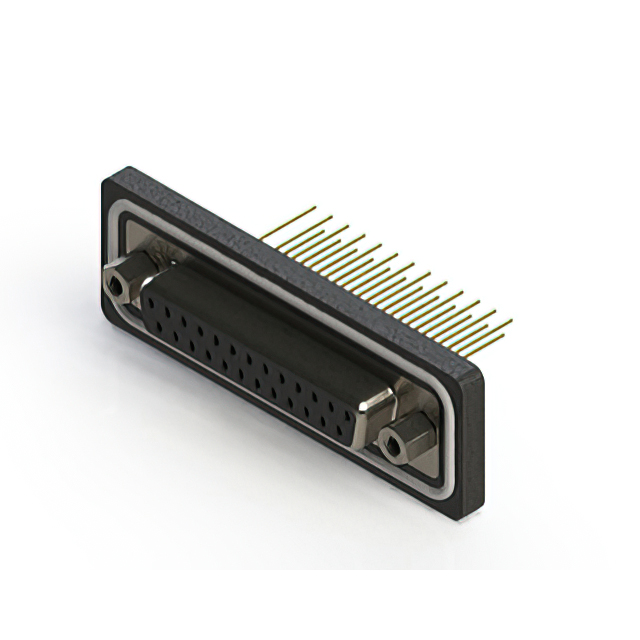

EDAC Inc. 628-W25-321-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.38 µm	15 µin	Solder	B DB	3	Gold	Through Hole	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub
EDAC Inc. 628-W25-322-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.38 µm	15 µin		B DB	3	Gold	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub

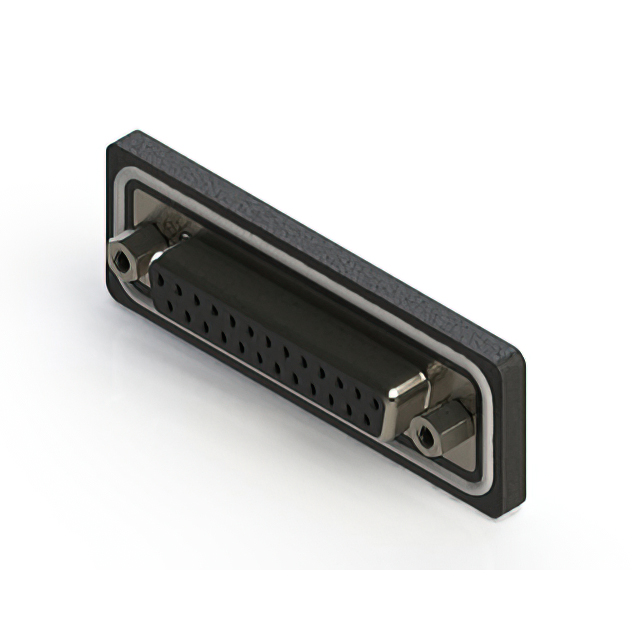

EDAC Inc. 628-W25-320-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.38 µm	15 µin	Solder	B DB	3	Gold	Through Hole	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub

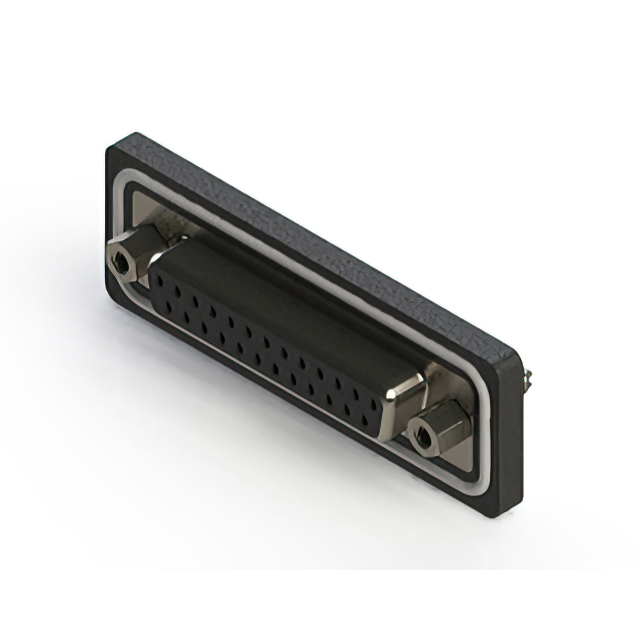

EDAC Inc. 628-W25-320-013	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.38 µm	15 µin	Solder	B DB	3	Gold	Through Hole	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub	Board Lock
EDAC Inc. 628-W25-620-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.76 Ám	30 Áin	Solder	B DB	3	Gold	Through Hole	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub

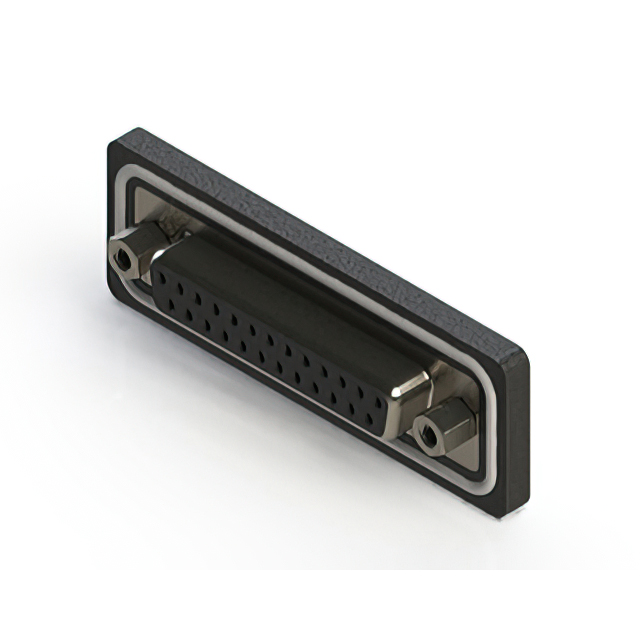

EDAC Inc. 628-W25-622-012	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.76 Ám	30 Áin		B DB	3	Gold	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub
EDAC Inc. 628-W25-620-013	Black	Copper Alloy	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	2	0.76 Ám	30 Áin	Solder	B DB	3	Gold	Through Hole	IP67 - Dust Tight Waterproof	Signal and Power	4-40	Receptacle Female Sockets	25	Nickel Plated Steel	UL94 V-0	5 A	D-Sub	Board Lock
