LYY876 Series

Catalog

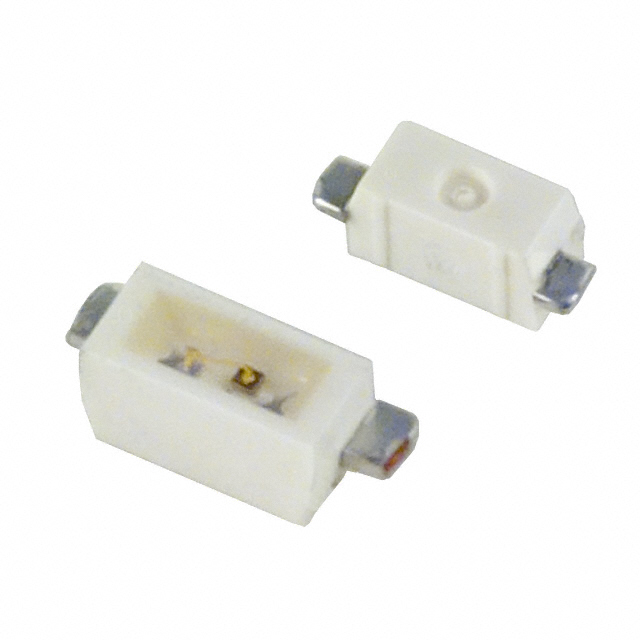

LED YELLOW CLEAR SMD R/A

Part	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Lens Color	Wavelength - Peak	Supplier Device Package	Viewing Angle	Color	Configuration	Millicandela Rating	Lens Transparency	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Height (Max) [Max] [z]	Current - Test
ams-OSRAM USA INC. LY Y876-Q2T1-26-Z	2-SMD Flat Leads	Right Angle Surface Mount	2 V	2.2 mm	1.2 mm	Rectangle with Flat Top	Colorless	591 nm	SMD	120 °	Yellow	Standard	222.5 mcd	Clear	0.7 mm	1.7 mm	587 nm	1.2 mm	20 mA
ams-OSRAM USA INC. LY Y876-R2T1-26-0-20-R18-Z	2-SMD Flat Leads	Right Angle Surface Mount	2 V	2.2 mm	1 mm 1.2 mm	Rectangle with Flat Top	Colorless	588 nm 591 nm	2-SMD	120 °	Yellow	Standard	247.5 mcd	Clear	0.7 mm 1.2 mm	1.7 mm 3.1 mm	587 nm	1.2 mm 1.3 mm	20 mA
ams-OSRAM USA INC. LY Y876-Q2S1-26-0-20-R18-Z	2-SMD Flat Leads	Right Angle Surface Mount	2 V	2.2 mm	1.2 mm	Rectangle with Flat Top	Colorless	591 nm	SMD	120 °	Yellow	Standard	157 mcd	Clear	0.7 mm	1.7 mm	587 nm	1.2 mm	20 mA
