TPSM53604 Series

Catalog

36-V, 4-A STEP-DOWN POWER MODULE IN SMALL 5.5 X 5 X 4-MM ENHANCED HOTROD™ QFN WITH SIMPLE FOOTPRINT

Part	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Applications	Control Features	Type	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Mounting Type	Supplier Device Package	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Current - Output	Voltage - Output	Main Purpose	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Utilized IC / Part
Texas Instruments TPSM53604RDAR	3.8 V	-40 C	105 ░C	36 V	ITE (Commercial)	Active High Enable	Non-Isolated PoL Module	15-PowerBQFN Module	7 V	1 V	4 A	Adjustable Output	1	0.22 in	5.5 mm	5 mm	4.1 mm	0.16 in	0.2 in	95 %	Surface Mount	15-B3QFN (5x5.5)

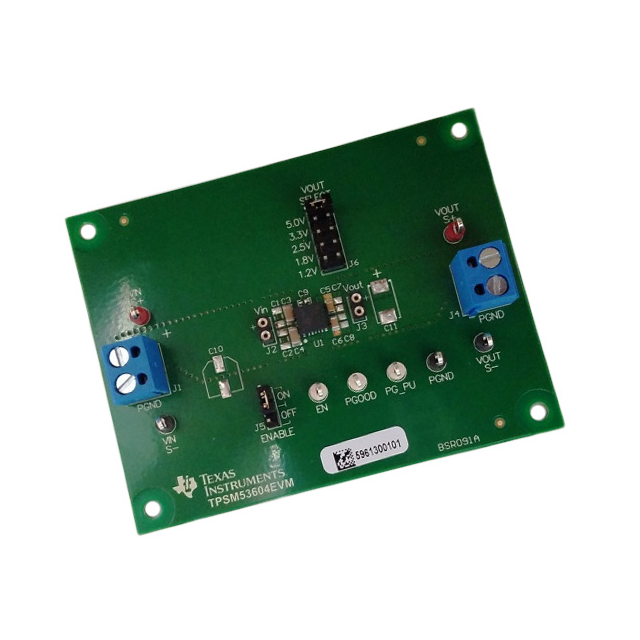

Texas Instruments TPSM53604EVM																							1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	4 A	1.2 V 1.8 V 2.5 V 3.3 V 5 V	DC/DC Step Down	Buck	36 V	3.8 V	Board(s)	TPSM53604
