TPS2544 Series

USB charging port controller with CDP/SDP auto switch and 2.5A power switch

Catalog

USB charging port controller with CDP/SDP auto switch and 2.5A power switch

Part	Primary Attributes	Type	Supplied Contents	Utilized IC / Part	Function	Input Type	Voltage - Load [Min]	Voltage - Load [Max]	Number of Outputs	Output Configuration	Supplier Device Package	Ratio - Input:Output [custom]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Typ)	Current - Output (Max) [Max]	Fault Protection	Mounting Type	Interface	Switch Type	Package / Case

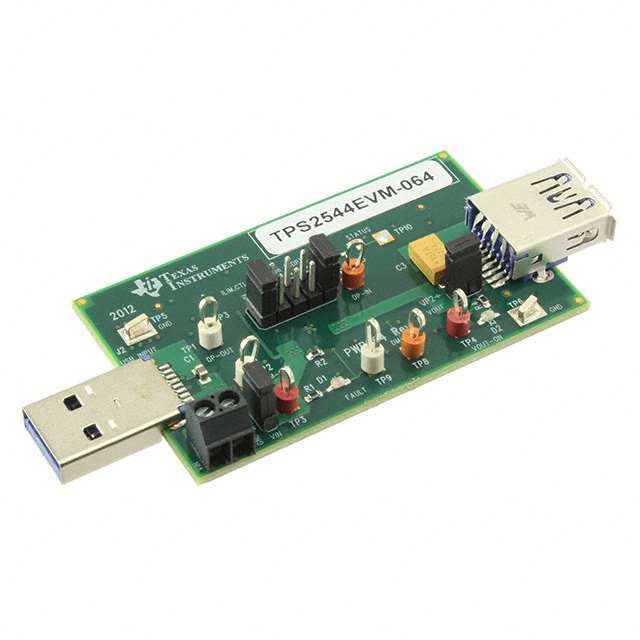

Texas Instruments TPS2544EVM-064	USB Charging Port	Power Management	Board(s)	TPS2544	Power Distribution Switch (Load Switch)
Texas Instruments TPS2544RTER						Non-Inverting	4.5 V	5.5 V	1	High Side	16-WQFN (3x3)	1:1	N-Channel	-40 °C	125 ¯C	73 mOhm	3 A	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	On/Off	USB Switch	16-WFQFN Exposed Pad
Texas Instruments TPS2544RTET						Non-Inverting	4.5 V	5.5 V	1	High Side	16-WQFN (3x3)	1:1	N-Channel	-40 °C	125 ¯C	73 mOhm	3 A	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	On/Off	USB Switch	16-WFQFN Exposed Pad

Catalog

USB charging port controller with CDP/SDP auto switch and 2.5A power switch

Key Features

• D+/D– CDP/DCP Modes per USB Battery ChargingSpecification 1.2D+/D– Shorted Mode per Chinese Telecommunication IndustryStandard YD/T 1591-2009Support non-BC1.2 charging modes by automatic selectionD+/D– Divider Modes 2.0V/2.7V and 2.7/2.0VD+/D– 1.2V ModeSupports Sleep-Mode Charging and Mouse/Keyboard Wake UpAutomatic SDP/CDP Switching for devices that do not connectto CDP portsCompatible with USB 2.0 and 3.0 Power Switch requirementsIntegrated 73-mΩ (typ) High-Side MOSFETAdjustable Current-Limit up to 3.0 A (typ)Operating Range: 4.5V to 5.5VMax device current2µA when device disabled270µA when device enabledDrop-In and BOM Compatible with TPS2543 and TPS2546Available in 16-Pin QFN (3×3) Package8KV ESD rating on DM/DP pinsUL Listed and CB File No. E169910D+/D– CDP/DCP Modes per USB Battery ChargingSpecification 1.2D+/D– Shorted Mode per Chinese Telecommunication IndustryStandard YD/T 1591-2009Support non-BC1.2 charging modes by automatic selectionD+/D– Divider Modes 2.0V/2.7V and 2.7/2.0VD+/D– 1.2V ModeSupports Sleep-Mode Charging and Mouse/Keyboard Wake UpAutomatic SDP/CDP Switching for devices that do not connectto CDP portsCompatible with USB 2.0 and 3.0 Power Switch requirementsIntegrated 73-mΩ (typ) High-Side MOSFETAdjustable Current-Limit up to 3.0 A (typ)Operating Range: 4.5V to 5.5VMax device current2µA when device disabled270µA when device enabledDrop-In and BOM Compatible with TPS2543 and TPS2546Available in 16-Pin QFN (3×3) Package8KV ESD rating on DM/DP pinsUL Listed and CB File No. E169910

Description

The TPS2544 is a USB charging port controller and power switch with an integrated USB 2.0 high-speed data line (D+/D–) switch. TPS2544 provides the electrical signatures on D+/D– to support charging schemes listed under device feature section. TI tests charging of popular mobile phones, tablets and media devices with the TPS2544 to ensure compatibility with both BC1.2 compliant and non-compliant devices. In addition to charging popular devices, TPS2544 also supports system wake up (from S3) with a mouse/keyboard; both low speed and full speed are supported. The TPS2544 73-mΩ power-distribution switch is intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. Two programmable current thresholds provide flexibility for setting current limits. The TPS2544 is a USB charging port controller and power switch with an integrated USB 2.0 high-speed data line (D+/D–) switch. TPS2544 provides the electrical signatures on D+/D– to support charging schemes listed under device feature section. TI tests charging of popular mobile phones, tablets and media devices with the TPS2544 to ensure compatibility with both BC1.2 compliant and non-compliant devices. In addition to charging popular devices, TPS2544 also supports system wake up (from S3) with a mouse/keyboard; both low speed and full speed are supported. The TPS2544 73-mΩ power-distribution switch is intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. Two programmable current thresholds provide flexibility for setting current limits.
