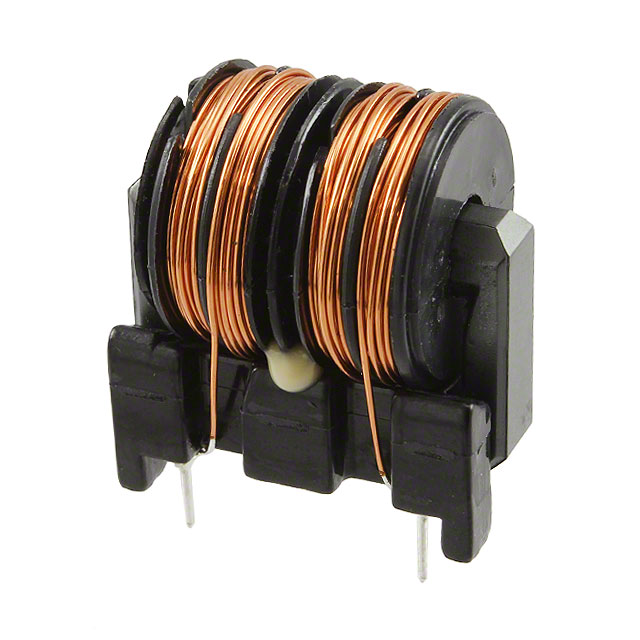

SS30V Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES DUAL 5400UH 1KHZ 3A 0.12OHM DCR THRU-HOLE

Part	Mounting Type	DC Resistance (DCR) (Max) [Max]	Number of Lines	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Package / Case	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Inductance @ Frequency	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR) (Max)
KEMET SS30V-300054	Through Hole	0.12 Ohm	2	3 A	120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	5.4 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm
KEMET SS30V-R350047	Through Hole	100 mOhm	2	3.5 A	120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	1 kHz 4.7 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm
KEMET SS30V-080730	Through Hole	1.5 Ohm	2	800 mA	120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	73 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm
KEMET SS30V-R200132	Through Hole	210 mOhm	2	2 A	120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	13.2 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm

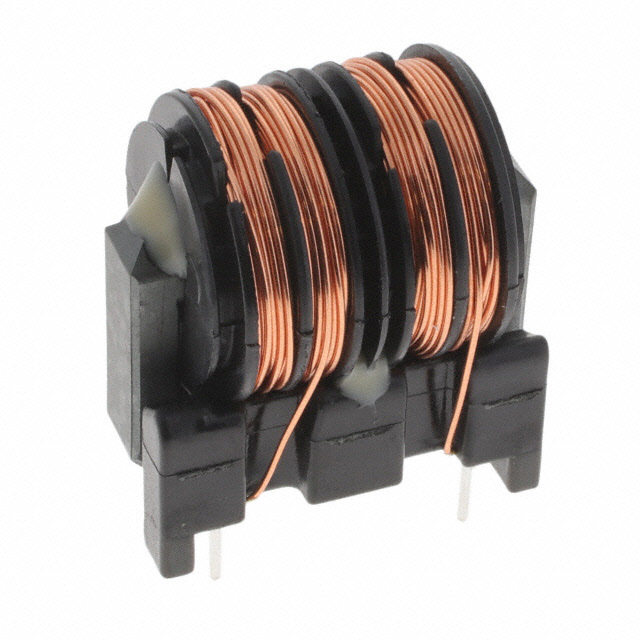

KEMET SS30V-120290	Through Hole		2	1.2 A	120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	1 kHz 29 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm	600 mOhm

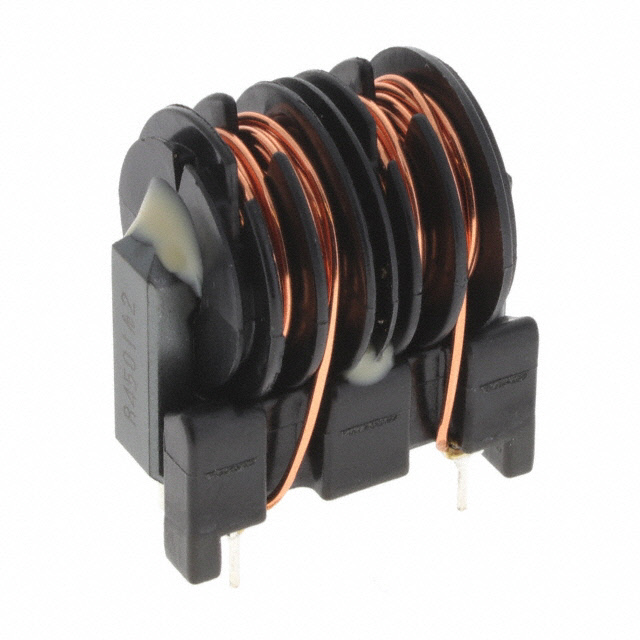

KEMET SS30V-R450017	Through Hole	60 mOhm	2		120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	1.7 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm

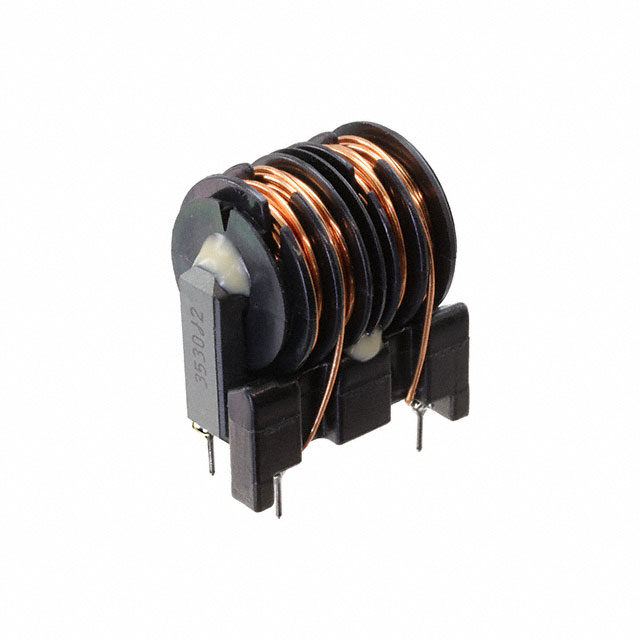

KEMET SS30V-350036	Through Hole	100 mOhm	2	3.5 A	120 °C	-40 C	Power Line	Vertical 4 PC Pin	1.299 in	33 mm	1 kHz 3.6 mH	250 V	31 mm	1.22 in	0.886 "	22.5 mm
