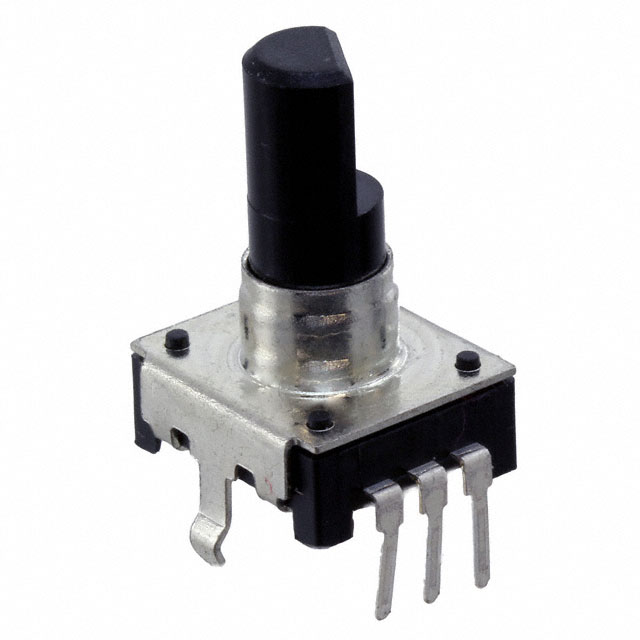

PEC12R Series
Manufacturer: Bourns Inc.
Beta
⌘K
ROTARY ENCODER MECHANICAL 24PPR
| Part | Encoder Type | Orientation | Output Type | Pulses per Revolution | Orientation [custom] | Rotational Life (Cycles Min) | Termination Style | Detent | Actuator Type [diameter] | Actuator Type | Built in Switch | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Incremental Mechanical | Vertical | Quadrature (Incremental) | 24 | Horizontal | 30K | PC Pin | 6 mm | Flatted End | |||
 Bourns Inc. | Incremental Mechanical | Vertical | Quadrature (Incremental) | 12 | Horizontal | 30K | PC Pin | 6 mm | Flatted End | |||
 Bourns Inc. | Incremental Mechanical | Vertical | Quadrature (Incremental) | 24 | Horizontal | 30K | PC Pin | 6 mm | Flatted End | |||
 Bourns Inc. | Incremental | Vertical | Quadrature (Incremental) | 12 | 30K | PC Pin | 6 mm | Flatted End | ||||
 Bourns Inc. | Incremental Mechanical | Right Angle Vertical | Quadrature (Incremental) | 24 | 30K | PC Pin | 6 mm | Flatted End | ||||
 Bourns Inc. | Incremental | Quadrature (Incremental) | 24 | Horizontal | 30K | PC Pin | 6 mm | Flatted End | ||||
 Bourns Inc. | Incremental Mechanical | Vertical | Quadrature (Incremental) | 24 | Horizontal | 30K | PC Pin | 6 mm | Flatted End | |||
 Bourns Inc. | Incremental | Vertical | Quadrature (Incremental) | 12 | 30K | PC Pin | 6 mm | Flatted End | ||||
 Bourns Inc. | Incremental Mechanical | Vertical | Quadrature (Incremental) | 24 | Horizontal | 30K | PC Pin | 6 mm | Flatted End | Panel PCB Through Hole | ||
Bourns Inc. | Incremental | Horizontal |
