MRY106 Series

Catalog

SWITCH ROTARY 2-6POS 0.4VA 28V

Part	Panel Cutout Dimensions [diameter]	Termination Style	Mounting Type	Current Rating (Amps)	Number of Decks [custom]	Number of Positions [Min]	Number of Positions [Max]	Actuator Length [x]	Number of Poles per Deck	Contact Finish	Actuator Type	Contact Timing	Voltage Rating - DC	Circuit per Deck	Contact Material	Voltage Rating - AC	Index Stops	Features	Depth Behind Panel [z]
NKK Switches MRY106G-A	0.25 in	Solder Turret	Panel Mount	0.4 VA	1	2	6	13 mm	1	Gold	Knob	Non-Shorting (BBM)	28 V	SP6T	Copper	28 V	Adjustable	Sealed - Flux Protection	24.9 mm

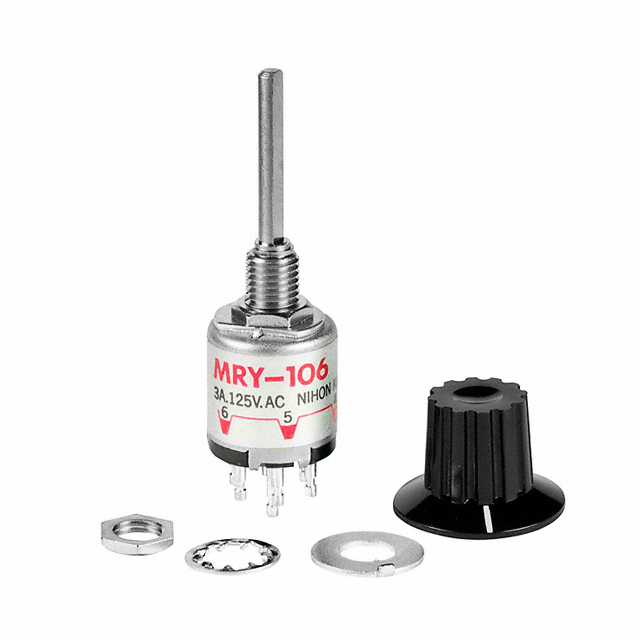

NKK Switches MRY106-A	0.25 in	Solder Turret	Panel Mount	2 A 3 A	1	2	6	13 mm	1	Silver	Knob	Non-Shorting (BBM)	30 V	SP6T	Copper	125 V	Adjustable	Sealed - Flux Protection	24.9 mm
NKK Switches MRY106-BG	0.25 in	Solder Turret	Panel Mount	2 A 3 A	1	2	6	14.3 mm	1	Silver	Knob	Non-Shorting (BBM)	30 V	SP6T	Copper	125 V	Adjustable	Sealed - Flux Protection	24.9 mm
