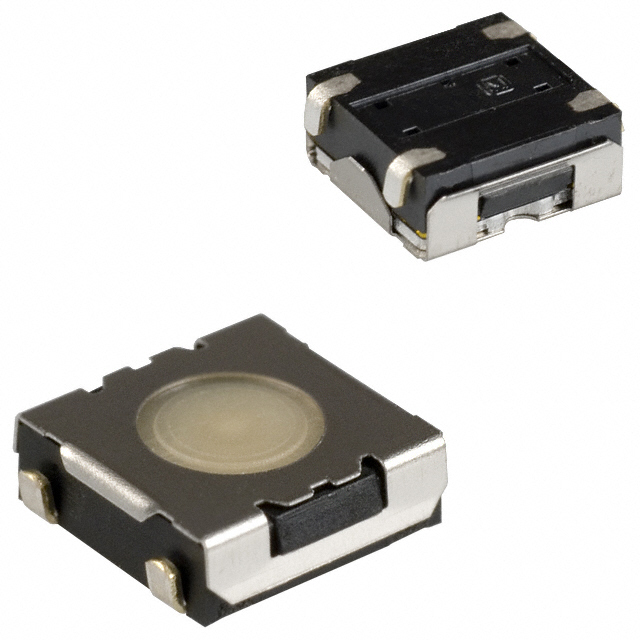

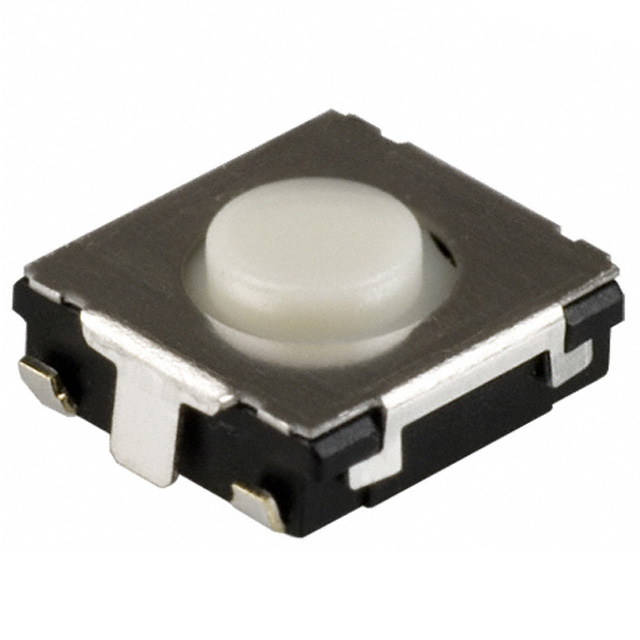

EVQ-QW Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Actuator Height off PCB, Vertical [z]	Mechanical Life	Switch Function	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Circuit	Switch Travel	Contact Rating @ Voltage [x]	Mounting Type	Actuator Type	Actuator Orientation	Outline [y]	Outline [x]	Illumination	Operating Force
Panasonic Industrial Automation Sales EVQ-QWN01W	2 mm	100000 Cycles	Off-Mom	Grounding Pin	-20 C	70 °C	J Lead	SPST-NO	0.25 mm	0.02 A 15 VDC	Surface Mount	Standard	Top Actuated	6.2 mm	6.2 mm	Non-Illuminated
Panasonic Industrial Automation Sales EVQ-QWK02W	2.5 mm	10000 Steps	Off-Mom	Grounding Pin	-20 C	70 °C	J Lead	SPST-NO	0.25 mm	0.02 A 15 VDC	Surface Mount	Standard	Top Actuated	6.2 mm	6.2 mm	Non-Illuminated	260 gf
Panasonic Industrial Automation Sales EVQ-QWM01W	2 mm	100000 Cycles	Off-Mom	Grounding Pin	-20 C	70 °C	J Lead	SPST-NO	0.25 mm	0.02 A 15 VDC	Surface Mount	Standard	Top Actuated	6.2 mm	6.2 mm	Non-Illuminated	130 gf

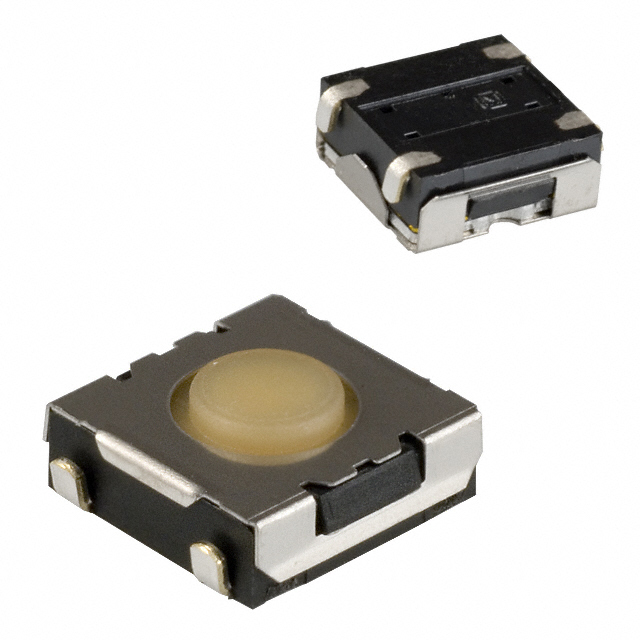

Panasonic Industrial Automation Sales EVQ-QWS02W	2.5 mm	100000 Cycles	Off-Mom		-20 C	70 °C	J Lead	SPST-NO	0.25 mm	0.02 A 15 VDC	Surface Mount	Standard	Top Actuated	6.2 mm	6.2 mm	Non-Illuminated
