RLB0712 Series

Catalog

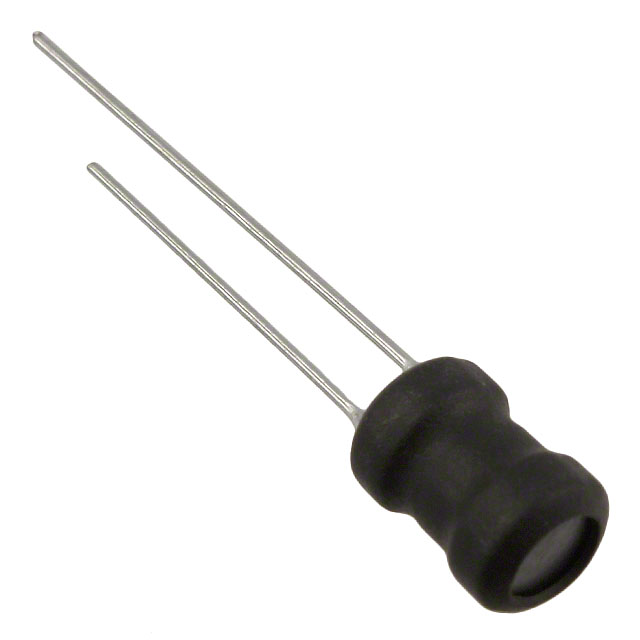

INDUCTOR,FERRITE,56UH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Part	Shielding	Current Rating (Amps)	Inductance Frequency - Test	Type	Mounting Type	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Size / Dimension [diameter]	Size / Dimension [diameter]	Material - Core	Package / Case	DC Resistance (DCR) [Max]	Inductance	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RLB0712-560KL	Unshielded	400 mA	1 kHz	Drum Core Wirewound	Through Hole	5 MHz	125 °C	-40 C	2.52 MHz 20	0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder	210 mOhm	56 µH	10 %	11 mm	0.433 in
Bourns Inc. RLB0712-820KL	Unshielded	0.34 A	1 kHz	Drum Core Wirewound	Through Hole	5 MHz	125 °C	-40 C	2.52 MHz 20	0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder	350 mOhm	82 µH	10 %			10 mm	0.394 in
Bourns Inc. RLB0712-100KL	Unshielded	1.1 A	1 kHz	Drum Core Wirewound	Through Hole	16 MHz	125 °C	-40 C	2.52 MHz 20	0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder		10 µH	10 %	11 mm	0.433 in			70 mOhm
Bourns Inc. RLB0712-271KL	Unshielded	0.22 A	1 kHz	Drum Core Wirewound	Through Hole	2.5 MHz	125 °C	-40 C		0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder	1 Ohm	270 µH	10 %	11 mm	0.433 in				20	796 kHz
Bourns Inc. RLB0712-150KL	Unshielded	900 mA	1 kHz	Drum Core Wirewound	Through Hole	10 MHz	125 °C	-40 C	2.52 MHz 20	0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder	90 mOhm	15 µH	10 %	11 mm	0.433 in
Bourns Inc. RLB0712-102KL	Unshielded		2.52 MHz	Drum Core Wirewound	Through Hole		125 °C	-40 C		0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder		1 mH	10 %	11 mm	0.433 in
Bourns Inc. RLB0712-120KL	Unshielded	1 A	1 kHz	Drum Core Wirewound	Through Hole	12 MHz	125 °C	-40 C	2.52 MHz 20	0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder	80 mOhm	12 µH	10 %	11 mm	0.433 in
Bourns Inc. RLB0712-561KL	Unshielded	150 mA	1 kHz	Drum Core Wirewound	Through Hole	2 MHz	125 °C	-40 C		0.264 in	6.7 mm	Ferrite	Radial Vertical Cylinder	1.8 Ohm	560 µH	10 %	11 mm	0.433 in				20	796 kHz
