KSJ1M4 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Ingress Protection	Features	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Actuator Type	Termination Style	Switch Function	Mounting Type	Illumination	Outline [x]	Outline [y]	Operating Force	Mechanical Life	Actuator Height off PCB, Vertical
Littelfuse/Commercial Vehicle Products KSJ1M411 80SH LFTR	IP60	Grounding Pin	0.05 A	6.57 mm	Top Actuated	SPST-NO	85 °C	-40 °C	0.55 mm	Spherical	PC Pin	Off-Mom	Through Hole	Non-Illuminated	7.4 mm	7.3 mm	300 gf	100000 Cycles

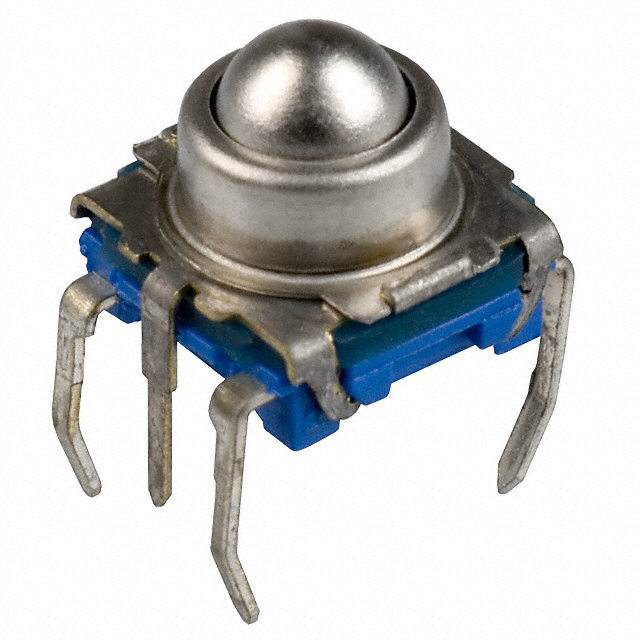

Littelfuse/Commercial Vehicle Products KSJ1M411	IP60	Grounding Pin	0.05 A		Top Actuated	SPST-NO	90 °C	-40 °C	0.55 mm	Spherical	PC Pin	Off-Mom	Through Hole	Non-Illuminated	7.4 mm	7.4 mm	300 gf	100000 Cycles	6.65 mm
Littelfuse/Commercial Vehicle Products KSJ1M411 LFT	IP60	Grounding Pin	0.05 A		Top Actuated	SPST-NO	90 °C	-40 °C	0.55 mm	Spherical	PC Pin	Off-Mom	Through Hole	Non-Illuminated	7.4 mm	7.4 mm	300 gf	100000 Cycles	6.65 mm
