VMMBZ33C Series

Catalog

28V;IR=0.1UA;IP=1.7A;P=100W;CD=1

Part	Bidirectional Channels [custom]	Package / Case	Capacitance @ Frequency	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Applications	Type	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Qualification	Grade	Unidirectional Channels [custom]

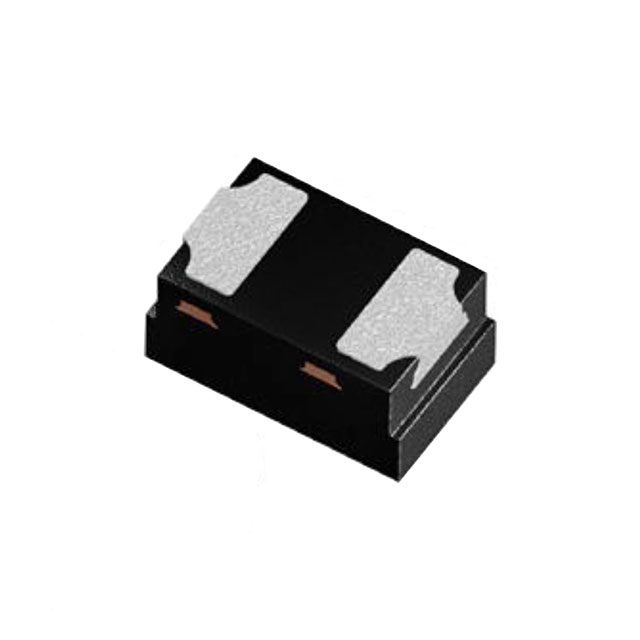

Vishay General Semiconductor - Diodes Division VMMBZ33C1DD1-G3-08	1	0402 (1006 Metric)	8 pF	DFN1006-2B	32.7 V	General Purpose	Zener	Surface Mount	300 mA	28 V	15 W	150 °C	-55 °C	59 V
Vishay General Semiconductor - Diodes Division VMMBZ33C1HD1HG3-08		0402 (1006 Metric)	1 MHz 16.1 pF	DFN1006-2A	31.3 V		Zener	Surface Mount	300 mA	28 V	15 W	150 °C	-55 °C	85 V	AEC-Q101	Automotive	1
Vishay General Semiconductor - Diodes Division VMMBZ33C1DD1HG3-08	1	0402 (1006 Metric)	8 pF	DFN1006-2B	32.7 V		Zener	Surface Mount	300 mA	28 V	15 W	150 °C	-55 °C	59 V	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division VMMBZ33C1HD1-G3-08		0402 (1006 Metric)	1 MHz 16.1 pF	DFN1006-2A	31.3 V	General Purpose	Zener	Surface Mount	300 mA	28 V	15 W	150 °C	-55 °C	85 V			1
