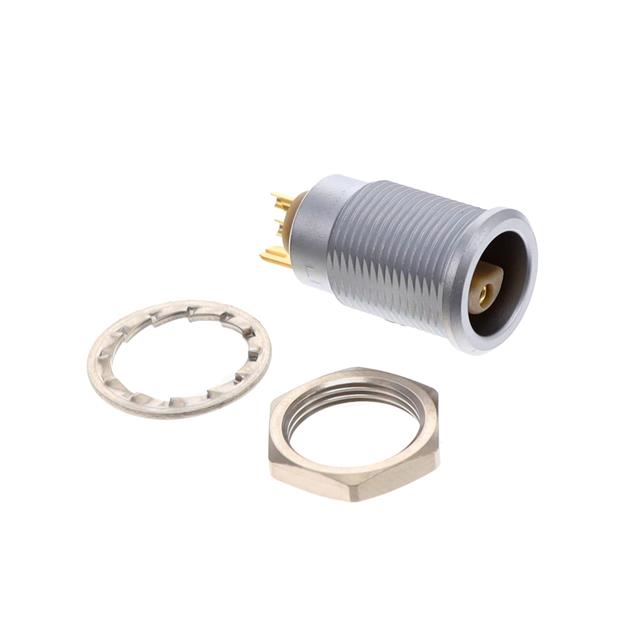

ERN.0S Series
Manufacturer: LEMO
Beta
⌘K
CONN TRIAX RCPT STR 50OHM SOLDER
| Part | Body Finish | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Impedance | Shield Termination | Contact Termination | Cable Group | Number of Ports | Fastening Type | Mounting Type | Connector Type | Center Contact Material | Ingress Protection | Connector Style | Mounting Feature | Housing Color | Color | Features | Shell Material | Orientation | Current Rating (Amps) | Primary Material | Insert Material | Shell Size - Insert | Contact Finish - Mating | Material Flammability Rating | Shielding | Contact Material | Shell Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Chrome | Gold | 1000 | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 250 °C | 1 Connector 1 Lockwasher 1 Nut | 50 Ohms | Solder | Solder Cup | RG-174 RG-178 | 1 | Push-Pull | Panel Mount | Receptacle Female Socket | Beryllium Copper | IP50 - Dust Protected | Triaxial | Bulkhead - Rear Side Nut | Silver | ||||||||||||||
LEMO | -55 C | 250 °C | Push-Pull | Panel Mount | Receptacle Female Sockets and Male Pins | IP50 - Dust Protected | Bulkhead - Rear Side Nut | Silver | Ground | Brass | Keyed | 7 A | Metal | Polyetheretherketone (PEEK) | 303 | Gold | UL94 V-0 | Shielded | Brass Bronze | Chrome | |||||||||||||||
LEMO | -50 °C | 115 °C | Push-Pull | Panel Mount | Receptacle Female Sockets and Male Pins | IP50 - Dust Protected | Bulkhead - Rear Side Nut | Black | Ground | Acetal Polyoxymethylene (POM) | Keyed | 10 A | Plastic | Polyetheretherketone (PEEK) | 302 | Gold | UL94 V-0 | Shielded | Brass Bronze | 2 | |||||||||||||||
 LEMO | -55 C | 250 °C | Push-Pull | Panel Mount | Receptacle Female Sockets and Male Pins | IP50 - Dust Protected | Bulkhead - Rear Side Nut | Silver | Ground | Brass | Keyed | 10 A | Metal | Polyetheretherketone (PEEK) | 302 | Gold | UL94 V-0 | Shielded | Brass Bronze | Chrome | 2 | ||||||||||||||
 LEMO | Chrome | Gold | 1000 | Polytetrafluoroethylene (PTFE) | Brass | -55 C | 250 °C | 1 Connector 1 Lockwasher 1 Nut | 50 Ohms | Solder | Solder Cup | 174 174A 178B 188A 196A 316B RG-122 | 1 | Push-Pull | Panel Mount | Receptacle Female Socket | Beryllium Copper | IP50 - Dust Protected | Coaxial | Bulkhead - Rear Side Nut | Silver |
