SRF2I019 Series

Manufacturer: Antenova

Catalog

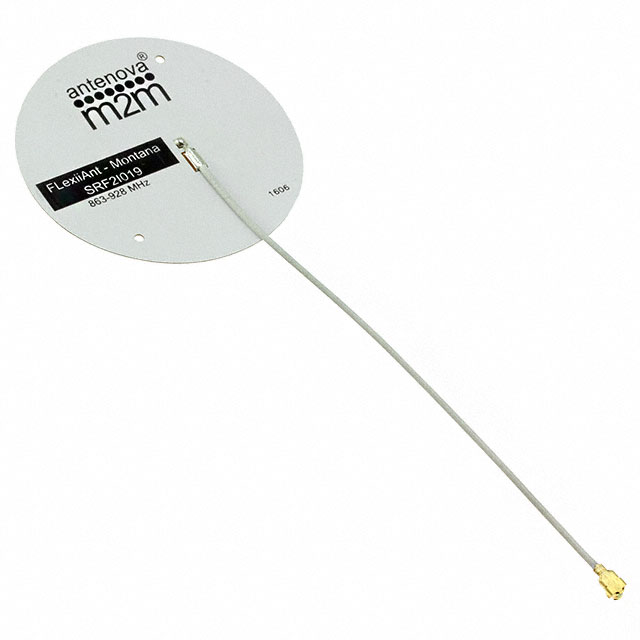

RF ANT 868MHZ/915MHZ FLAT PATCH

Part	Termination	Termination	Height (Max) [z]	Height (Max) [z]	Return Loss	Frequency (Center/Band)	Mounting Type	Number of Bands	Applications	VSWR	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	RF Family/Standard	Frequency Range [Min]	Frequency Range [Max]	Gain	Antenna Type	Features	Features
Antenova SRF2I019-200	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.15 mm	0.006 in	-11 dB	868 MHz 915 MHz	Adhesive	2	ISM	1.7	1 GHz	UHF	300 MHz	General ISM	863 MHz 902 MHz	870 MHz 928 MHz	1.9 dBi	Flat Patch	Cable - 200mm
Antenova SRF2I019-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.15 mm	0.006 in	-11 dB	868 MHz 915 MHz	Adhesive	2	ISM	1.7	1 GHz	UHF	300 MHz	General ISM	863 MHz 902 MHz	870 MHz 928 MHz	1.9 dBi	Flat Patch	Cable	100 mm
Antenova SRF2I019-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	0.15 mm	0.006 in	-11 dB	868 MHz 915 MHz	Adhesive	2	ISM	1.7	1 GHz	UHF	300 MHz	General ISM	863 MHz 902 MHz	870 MHz 928 MHz	1.9 dBi	Flat Patch	Cable - 150mm
