LB03 Series

Catalog

LED PANEL INDICATOR GRN 24V

Part	Termination Style	Type	Current	Lens Style	Lens Size [y]	Lens Size [x]	Lamp Color	Lens Color	Panel Cutout Shape	Ratings	Voltage	Lens Transparency
NKK Switches LB03KW01-5F24-JF	Quick Connect - 0.110" (2.8mm)	LED	13 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Green	Green	Rectangle	DC	24 V	Diffused
NKK Switches LB03KW01-5F12-JF	Quick Connect - 0.110" (2.8mm)	LED	26 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Green	Green	Rectangle	AC	12 V	Clear
NKK Switches LB03KW01-01-JE	Quick Connect - 0.110" (2.8mm)	Neon	1.5 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Yellow	Yellow	Rectangle		110 V	Diffused

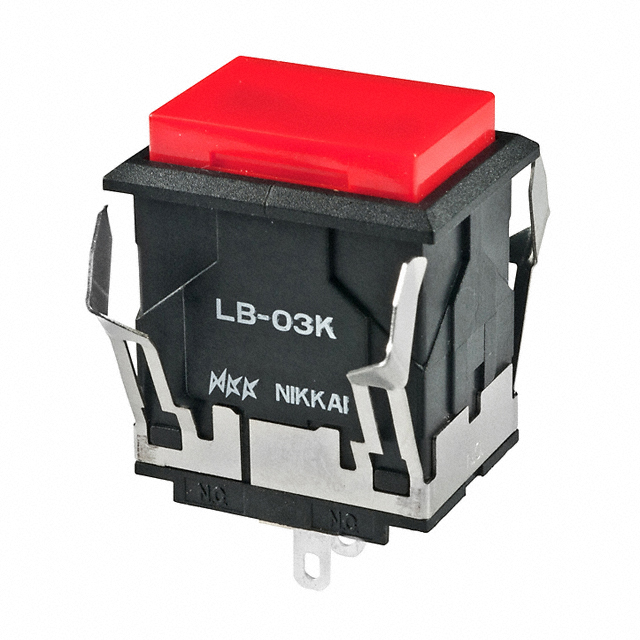

NKK Switches LB03KW01-12-CJ	Quick Connect - 0.110" (2.8mm)	Incandescent	60 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Red	Red	Rectangle	AC	12 V	Clear
NKK Switches LB03KW01-5C-JC	Quick Connect - 0.110" (2.8mm)	LED	30 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Red	Red	Rectangle		1.9 V	Diffused
NKK Switches LB03KW01-12-JC	Quick Connect - 0.110" (2.8mm)	Incandescent	60 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Red	Red	Rectangle		12 V	Diffused
NKK Switches LB03KW01-5D12-JB	Quick Connect - 0.110" (2.8mm)	LED	26 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Amber	Amber	Rectangle	DC	12 V	Diffused
NKK Switches LB03KW01-05-JC	Quick Connect - 0.110" (2.8mm)	Incandescent	115 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Red	Red	Rectangle		5 V	Diffused
NKK Switches LB03KW01-12-BJ	Quick Connect - 0.110" (2.8mm)	Incandescent	60 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	White	White	Rectangle		12 V	Diffused
NKK Switches LB03KW01-5C05-JC	Quick Connect - 0.110" (2.8mm)	LED	52 mA	Rectangle with Flat Top	13.2 mm	19.4 mm	Red	Red	Rectangle	AC	5 V	Clear
