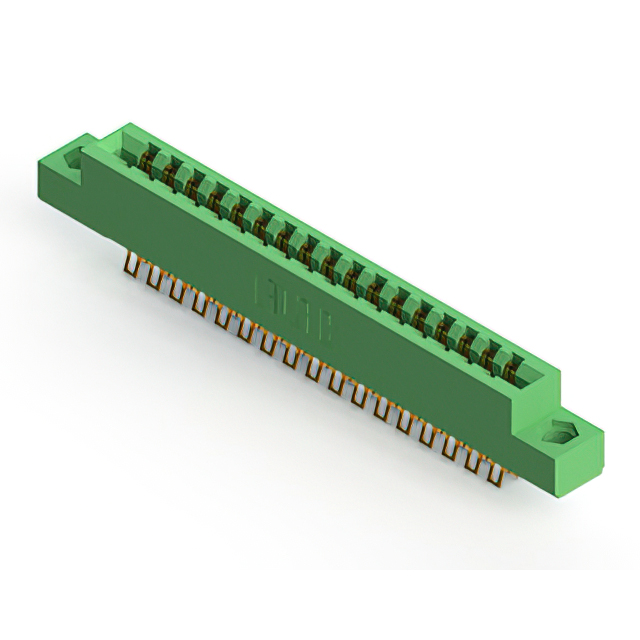

305-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 34POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Number of Positions [custom]	Read Out	Card Thickness [Max]	Card Thickness [Min]	Termination	Contact Type	Color	Number of Positions/Bay/Row [custom]	Card Type	Flange Feature	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material	Pitch	Pitch	Mounting Type	Gender	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-034-555-268	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Board Edge Straddle Mount	Female

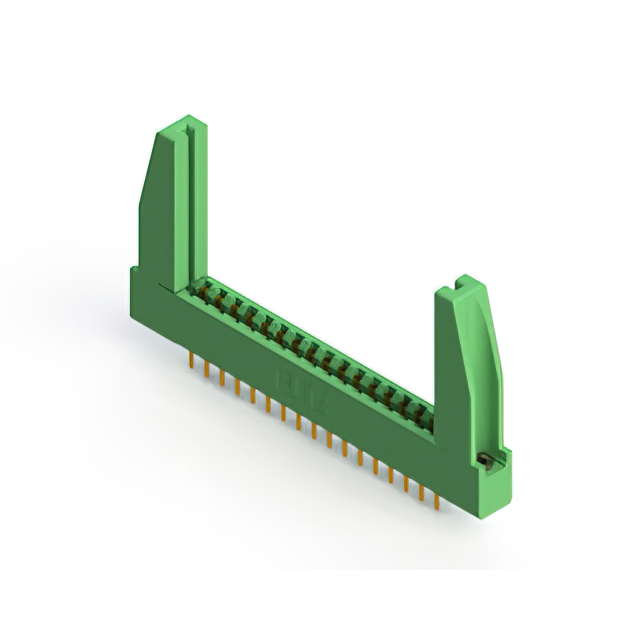

EDAC Inc. 305-034-520-578	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening		-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Panel Mount Through Hole	Female

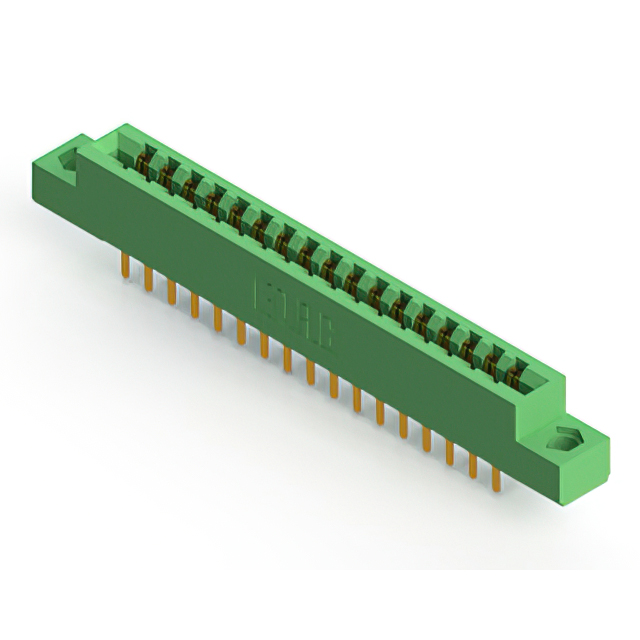

EDAC Inc. 305-034-520-204	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded		-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Panel Mount Through Hole	Female	0.156 "	3.96 mm

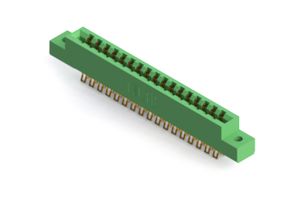

EDAC Inc. 305-034-555-502	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	Card Extender	-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Board Edge Straddle Mount	Female	0.128 "	3.25 mm

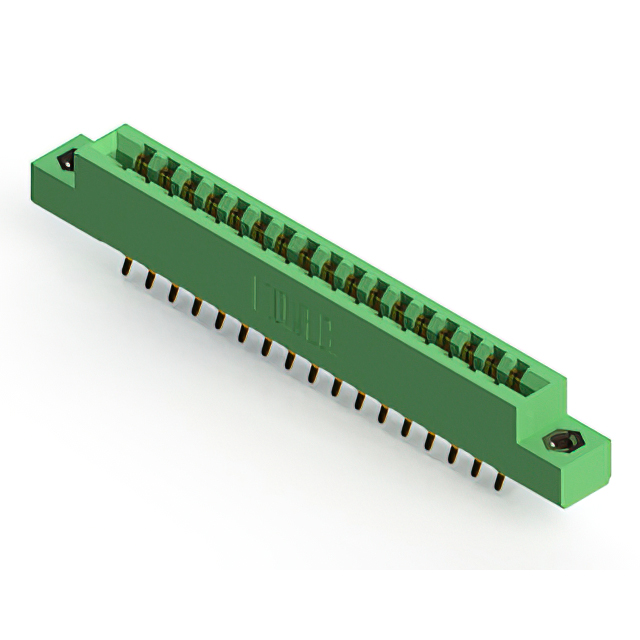

EDAC Inc. 305-034-556-508	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Card Extender	-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Board Edge Straddle Mount	Female

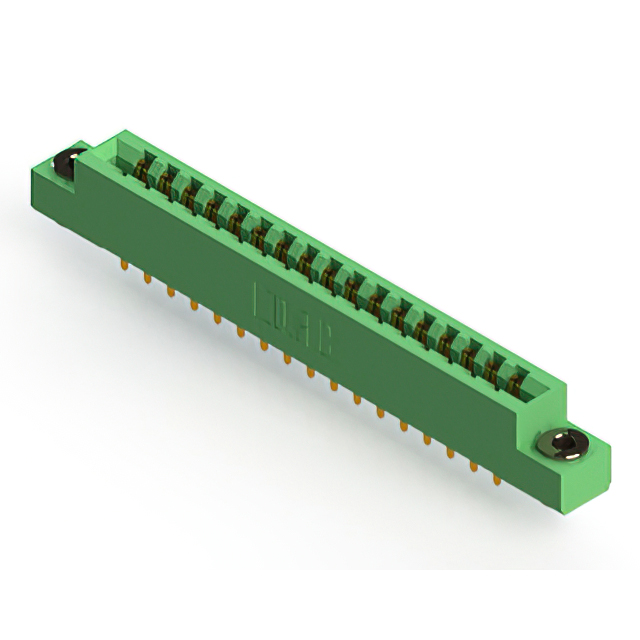

EDAC Inc. 305-034-521-503	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	Floating Bobbin Flush Mount		-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Panel Mount Through Hole	Female	0.116 "	2.95 mm
EDAC Inc. 305-034-556-258	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Board Edge Straddle Mount	Female

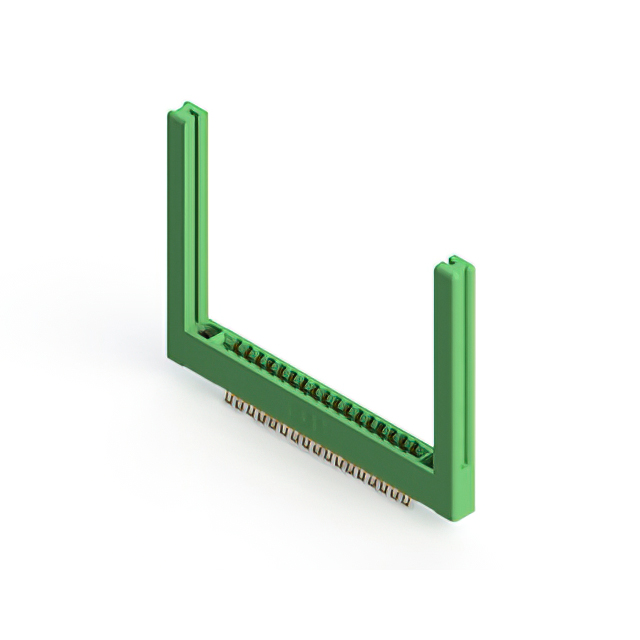

EDAC Inc. 305-034-555-258	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Board Edge Straddle Mount	Female

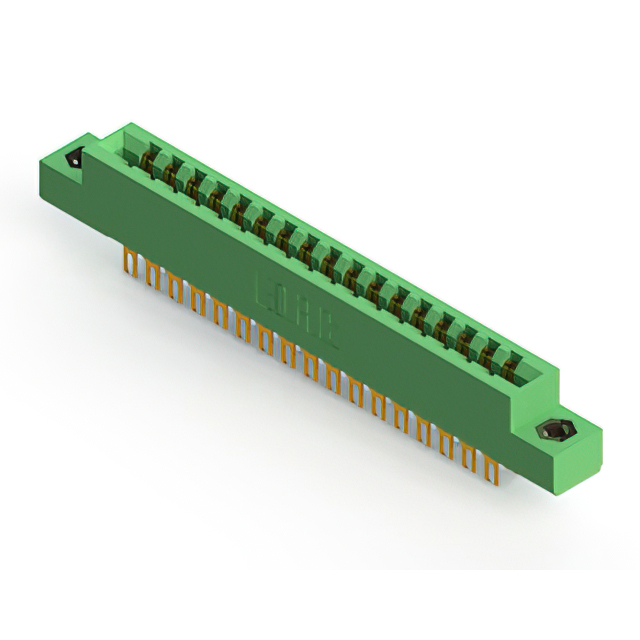

EDAC Inc. 305-034-500-208	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	Semi Bellows	Green	17	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening		-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Panel Mount	Female

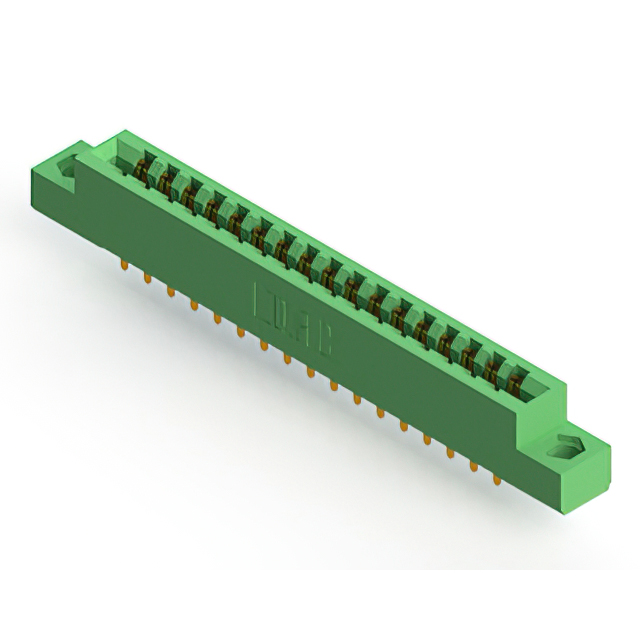

EDAC Inc. 305-034-521-204	Polyester Thermoplastic	2	34	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Semi Bellows	Green	17	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded		-40 C	105 ░C	2	0.25 Ám	10 Áin	Gold	Copper Alloy	3.96 mm	0.156 in	Panel Mount Through Hole	Female	0.156 "	3.96 mm
