MS3106E14 Series

Catalog

CONN CIRCULAR PIN 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT

Part	Features	Contact Finish - Mating	Mounting Type	Connector Type	Shell Finish	Shell Material	Voltage Rating	Ingress Protection	Color	Grade	Orientation	Primary Material	Shell Size - Insert	Qualification	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Backshell Material, Plating	Insert Material	Applications	Contact Material	Shielding	Cable Opening	Cable Opening	Orientation [x]
ITT Cannon, LLC MS3106E14S-7PF187	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Male Pins	Olive Drab Cadmium	Aluminum Alloy	500 VAC 700 VDC	Environment Resistant	Olive Drab	Military	N (Normal)	Metal	14S-7	MIL-DTL-5015	Threaded	-55 C	125 °C	22 A
ITT Cannon, LLC MS3106E14S-9P	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Male Pins	Olive Drab Cadmium	Aluminum Alloy	500 VAC 700 VDC	Environment Resistant	Olive Drab	Military	N (Normal)	Metal	14S-9	MIL-DTL-5015	Threaded	-55 C	125 °C	22 A	2

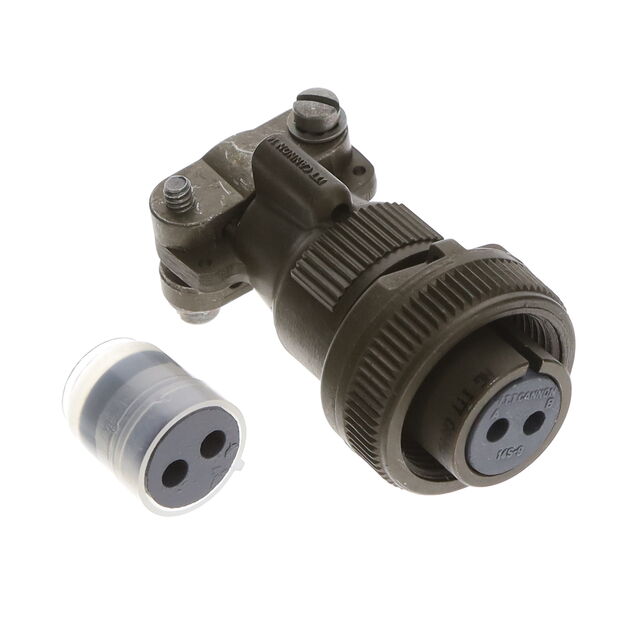

ITT Cannon, LLC MS3106E14S-9S	Backshell Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Female Sockets	Olive Drab Chromate over Cadmium	Aluminum Alloy		Environment Resistant	Olive Drab		N (Normal)	Metal	14S-9	MIL-5015	Threaded	-55 C	125 °C		2	Aluminum Alloy Olive Drab Chromate over Cadmium	Neoprene	Marine Military	Copper Alloy	Unshielded	0.406 in	10.3 mm

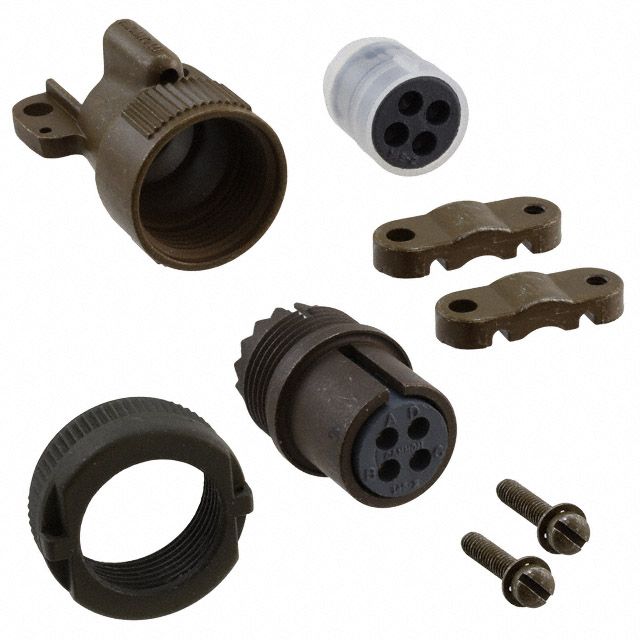

ITT Cannon, LLC MS3106E14S-2S	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Female Sockets	Olive Drab Cadmium	Aluminum Alloy	200 VAC 250 V	Environment Resistant	Olive Drab	Military	N (Normal)	Metal	14S-2	MIL-DTL-5015	Threaded	-55 C	125 °C	22 A	4

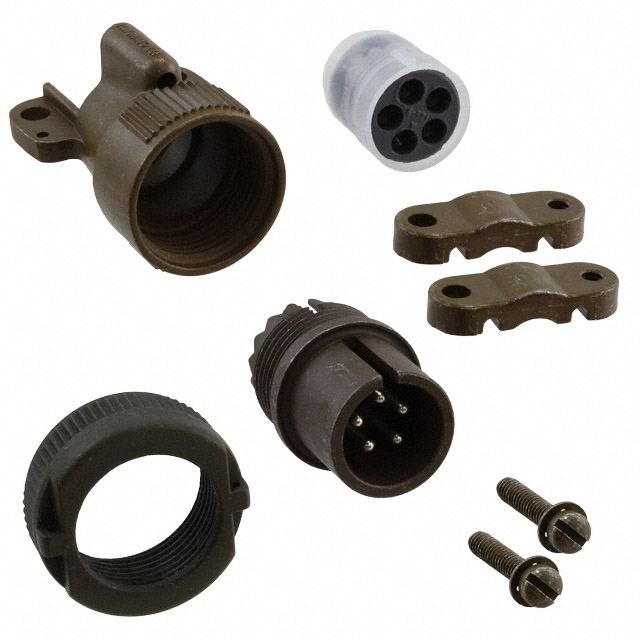

ITT Cannon, LLC MS3106E14S-5P	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Male Pins	Olive Drab Cadmium	Aluminum Alloy	200 VAC 250 V	Environment Resistant	Olive Drab	Military	N (Normal)	Metal	14S-5	MIL-DTL-5015	Threaded	-55 C	125 °C	22 A	5
ITT Cannon, LLC MS3106E14S-2PXF187	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Male Pins	Olive Drab Cadmium	Aluminum Alloy	200 VAC 250 V	Environment Resistant	Olive Drab	Military		Metal	14S-2	MIL-DTL-5015	Threaded	-55 C	125 °C	22 A	4								X
ITT Cannon, LLC MS3106E14S-6S	Cable Clamp Coupling Nut	Silver	Free Hanging (In-Line)	Plug Female Sockets	Olive Drab Cadmium	Aluminum Alloy	200 VAC 250 V	Environment Resistant	Olive Drab	Military	N (Normal)	Metal	14S-6	MIL-DTL-5015	Threaded	-55 C	125 °C	22 A	6
