1337629 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

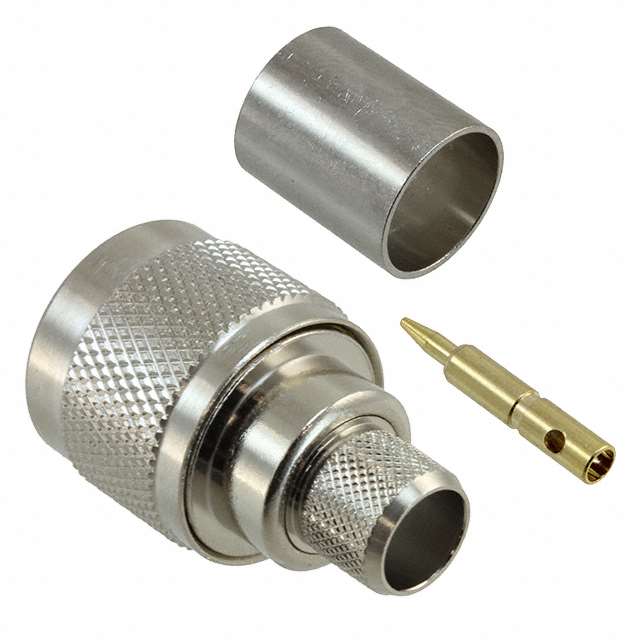

CONN N PLUG STR 50 OHM SOLDER
| Part | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Includes | Dielectric Material | Voltage Rating | Body Material | Mating Cycles | Connector Style | Number of Ports | Mounting Type | Connector Type | Fastening Type | Center Contact Material | Frequency - Max [Max] | Housing Color | Impedance | Shield Termination | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Nickel | -65 ░C | 165 °C | 0.3 dB | 1 Connector 1 Contact 1 Ferrule | Polytetrafluoroethylene (PTFE) | 1000 VDC | Brass | 500 | N Type | 1 | Free Hanging (In-Line) | Plug Male Pin | Threaded | Brass | 11 GHz | Silver | 50 Ohms | Crimp | Solder | RG-8A 213 |
