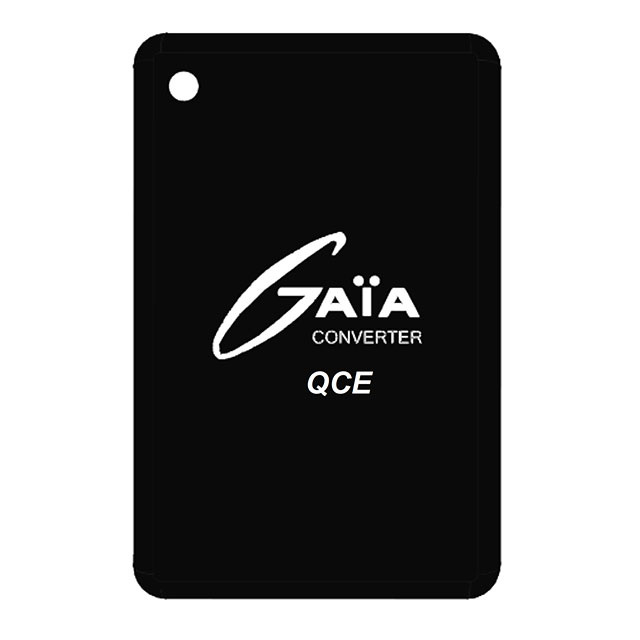

MGDSK10 Series
Manufacturer: Gaia Converter
Beta
⌘K
DC DC CONVERTER
| Part | Number of Outputs | Applications | Voltage - Input (Max) [Max] | Package / Case | Features | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Efficiency | Type | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Gaia Converter | 1 | ITE (Commercial) | 36 V | 8-DIP Module 5 Leads | Remote On/Off | 26.3 mm | 8.5 mm | 1.03 in | 40.3 mm | 1.58 inches | 0.33 in | 3.3 V | 80 % | Isolated Module | -40 C | 95 °C | 6.6 W | 9 V | 1.5 kV | 2 A | Through Hole |
Gaia Converter | 1 | ITE (Commercial) | 5.5 V | 8-DIP Module 5 Leads | Remote On/Off | 26.3 mm | 8.5 mm | 1.03 in | 40.3 mm | 1.58 inches | 0.33 in | 12 V | 80 % | Isolated Module | -40 C | 95 °C | 10 W | 4.5 V | 1.5 kV | 0.8 A | Through Hole |
