831060 Series
Manufacturer: Crouzet
Beta
⌘K

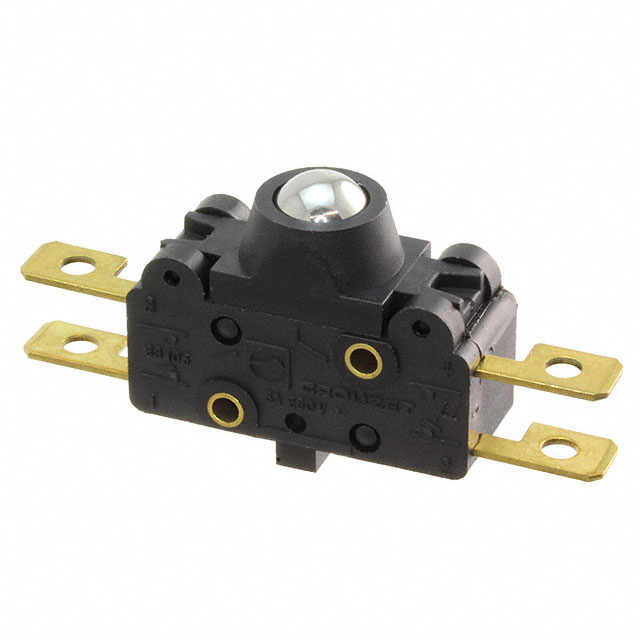

SWITCH SNAP ACTION SPDT 10A 250V
| Part | Release Force | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Pretravel | Pretravel | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Switch Function | Differential Travel | Differential Travel | Circuit | Actuator Type | Mechanical Life | Mounting Type | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Crouzet | 102 gf | 408 gf | 85 °C | -20 ░C | 0.06 in | 1.5 mm | 250 V | Quick Connect - 0.250" (6.3mm) | 10 A | On-Mom | 0.5 mm | 0.02 in | SPDT (DB/DM) | Ball Bearing Plunger | 10000000 Cycles | Chassis Mount | ||
 Crouzet | 102 gf | 408 gf | 85 °C | -40 C | 0.028 " | 0.7 mm | 250 V | Solder Lug | 5 A | On-Mom | 0.5 mm | 0.02 in | SPDT (DB/DM) | Round (Pin Plunger) | 10000000 Cycles | Chassis Mount | 0.7 mm | 0.026 " |
