DAC5686 Series
Manufacturer: Texas Instruments
Beta
⌘K

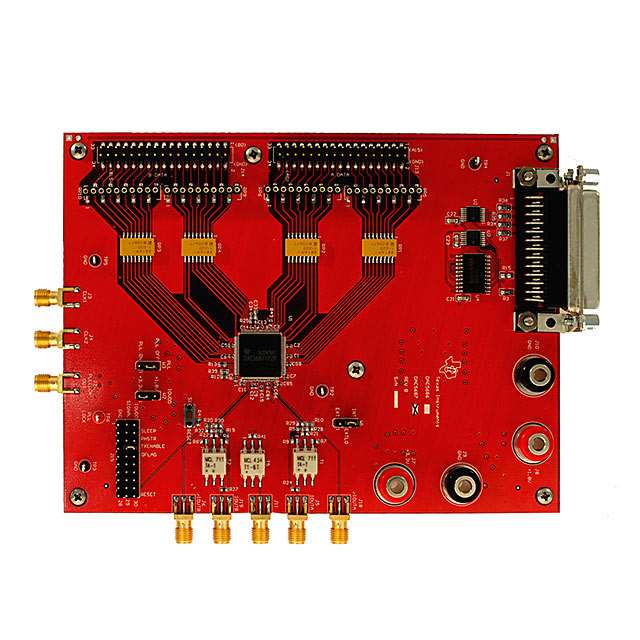

EVALUATION MODULE FOR DAC5686
| Part | Supplied Contents | Data Interface | Number of DAC's | Utilized IC / Part | Settling Time | Sampling Rate (Per Second) | Number of Bits | DAC Type | Mounting Type | Supplier Device Package | Package / Case | INL/DNL (LSB) | Architecture | Operating Temperature [Max] | Operating Temperature [Min] | Reference Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Differential Output | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Parallel | 2 | DAC5686 | 12 ns | 500 M | 16 | Current | ||||||||||||||
 Texas Instruments | Parallel | 12 ns | 16 | Surface Mount | 100-HTQFP (14x14) | 100-TQFP Exposed Pad | 9 LSB 12 LSB | Current Sink | 85 °C | -40 °C | External Internal | 1.95 V | 1.65 V | 3.6 V | 3 V | Current - Unbuffered | ||||||
Texas Instruments | Parallel | 12 ns | 16 | Surface Mount | 100-HTQFP (14x14) | 100-TQFP Exposed Pad | 9 LSB 12 LSB | Current Sink | 85 °C | -40 °C | External Internal | 1.95 V | 1.65 V | 3.6 V | 3 V | Current - Unbuffered |
