160434 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

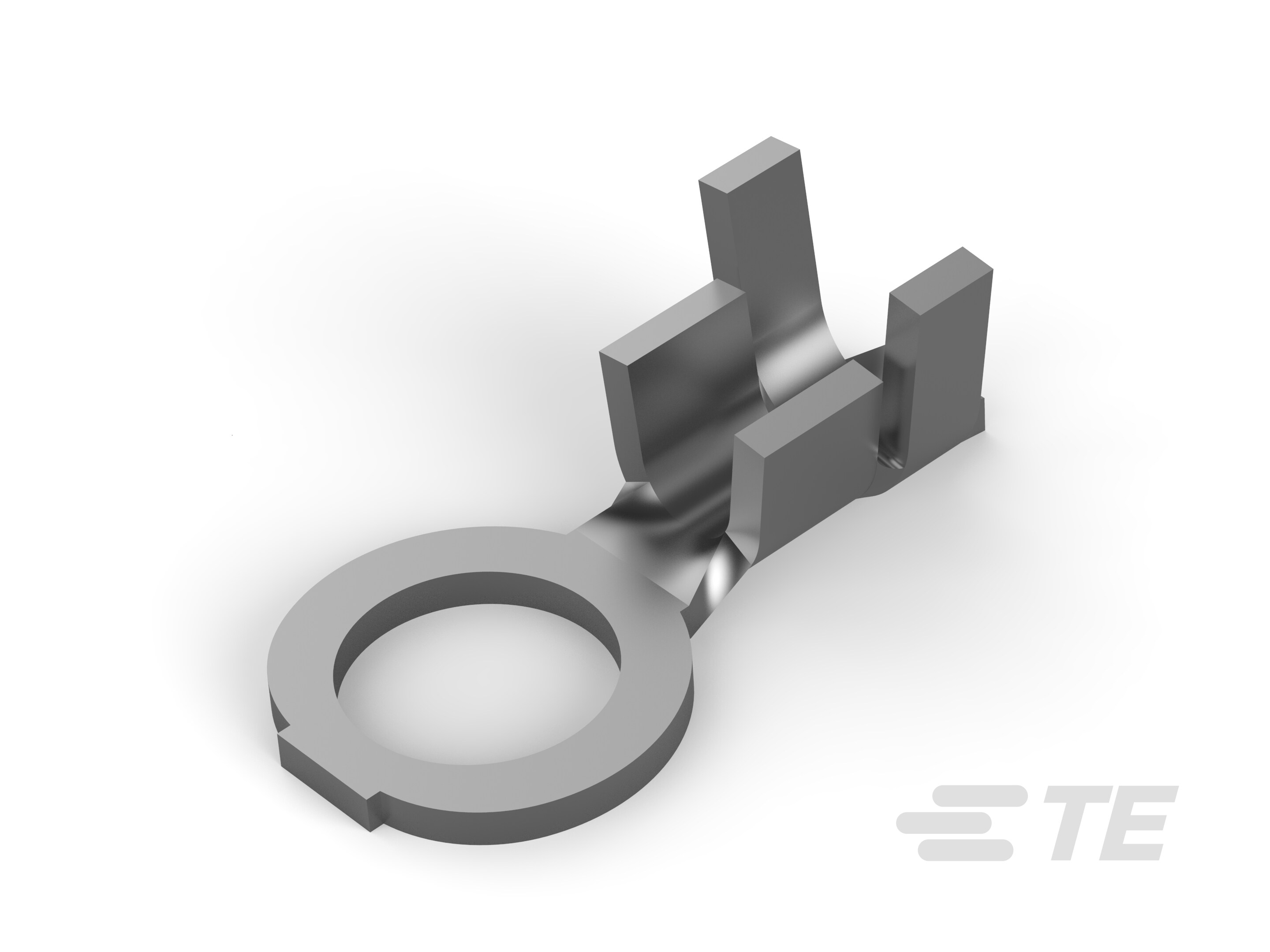

TERMINAL RING TONGUE OPEN BARREL
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Mounting Type | Contact Material | Terminal Type | Thickness | Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Termination | Insulation | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.5 mm | 3.4 mm | 0.134 in | 0.098 " | Free Hanging (In-Line) | Brass | Circular | 0.64 mm | 0.025 in | 20 AWG | 16 AWG | Tin | 11.68 mm | 0.46 in | Crimp | Non-Insulated | |
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Brass | Flat Sided | 0.64 mm | 0.025 in | 20 AWG | 16 AWG | Tin | 11.71 mm | 0.461 in | Crimp | Insulated | 8 Stud |
