505417 Series

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 1.00mm Mated Height, 2.00mm Mated Width, 30 Circuits, Armor Nail

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 1.00mm Mated Height, 2.00mm Mated Width, 30 Circuits, Armor Nail

Part	Contact Finish	Pitch [x]	Pitch [x]	Features	Number of Positions	Connector Type	Mated Stacking Heights	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]
Molex 5054170610	Gold	0.35 mm	0.014 in	Pick and Place Solder Retention	6	Outer Shroud Contacts Plug	1 mm	2	Surface Mount	0.8 mm	0.031 in

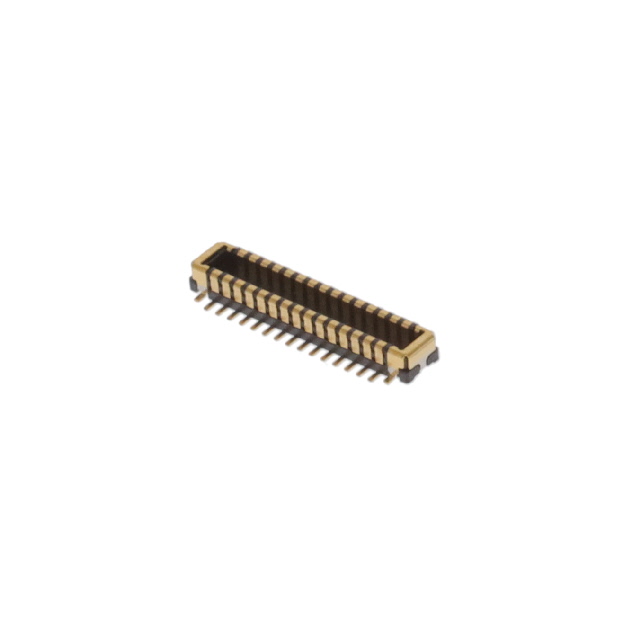

Molex 5054173010	Gold	0.35 mm	0.014 in	Pick and Place Solder Retention	30	Outer Shroud Contacts Plug	1 mm	2	Surface Mount	0.8 mm	0.031 in

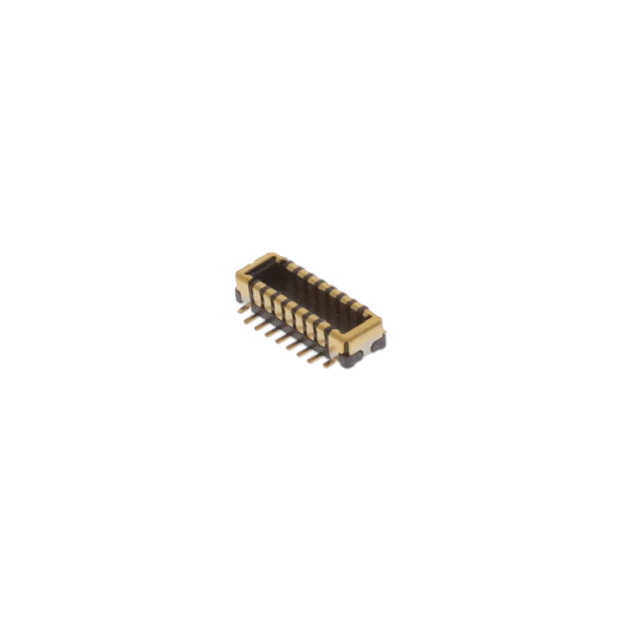

Molex 5054171410	Gold	0.35 mm	0.014 in	Pick and Place Solder Retention	14	Outer Shroud Contacts Plug	1 mm	2	Surface Mount	0.8 mm	0.031 in
Molex 5054173410	Gold	0.35 mm	0.014 in	Solder Retention	34	Outer Shroud Contacts Plug	1 mm	2	Surface Mount	0.8 mm	0.031 in

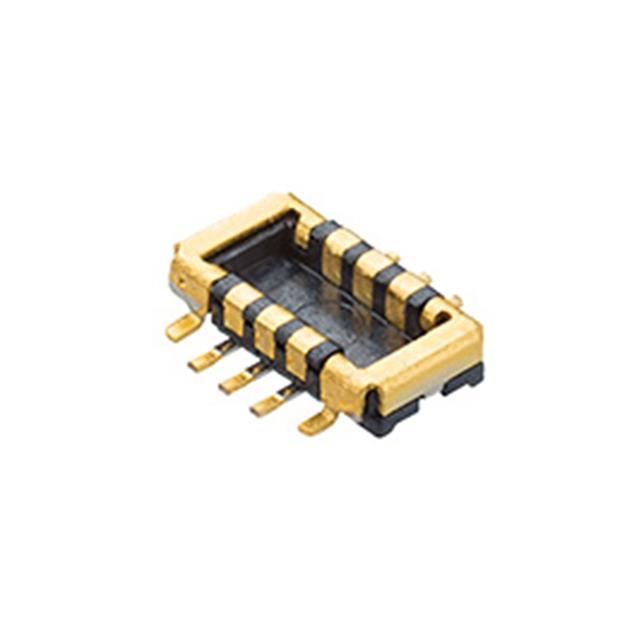

Molex 5054176010	Gold	0.35 mm	0.014 in	Solder Retention	60	Outer Shroud Contacts Plug	1 mm	2	Surface Mount	0.8 mm	0.031 in
Molex 5054174010	Gold	0.35 mm	0.014 in	Pick and Place Solder Retention	40	Outer Shroud Contacts Plug	1 mm	2	Surface Mount	0.8 mm	0.031 in

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 1.00mm Mated Height, 2.00mm Mated Width, 30 Circuits, Armor Nail
