SS-10-15 Series

Catalog

ROTARY SWITCH, SP5T, 0.1A, 5VDC, TH

Part	Length [x]	Length [x]	Body Material	Electrical Life	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Material	Termination Style	Actuator Level	Current Rating (Amps)	Pitch	Pitch	Mounting Type	Circuit	Actuator Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Washable

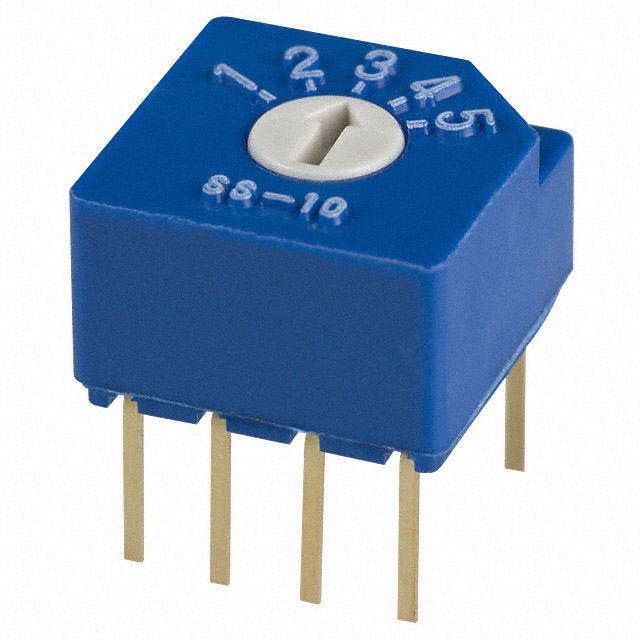

Nidec Components Corporation SS-10-15SPE	0.394 in	10 mm	Polybutylene Terephthalate (PBT)	500 Cycles	5 V	6.99 mm	0.275 in	5	Copper Alloy	PC Pin	Flush Recessed	100 mA	2.54 mm	0.1 "	Through Hole	SP5T	Rotary for Tool	Gold	-25 °C	70 °C

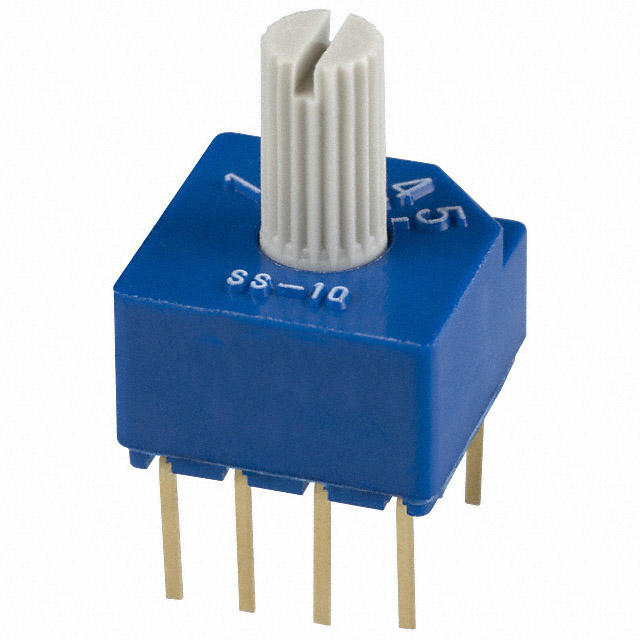

Nidec Components Corporation SS-10-15SP-LE	0.394 in	10 mm	Polybutylene Terephthalate (PBT)	500 Cycles	5 V	13.59 mm	0.535 in	5	Copper Alloy	PC Pin	Raised	100 mA	2.54 mm	0.1 "	Through Hole	SP5T	Rotary with Shaft	Gold	-25 °C	70 °C
