MPC87 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

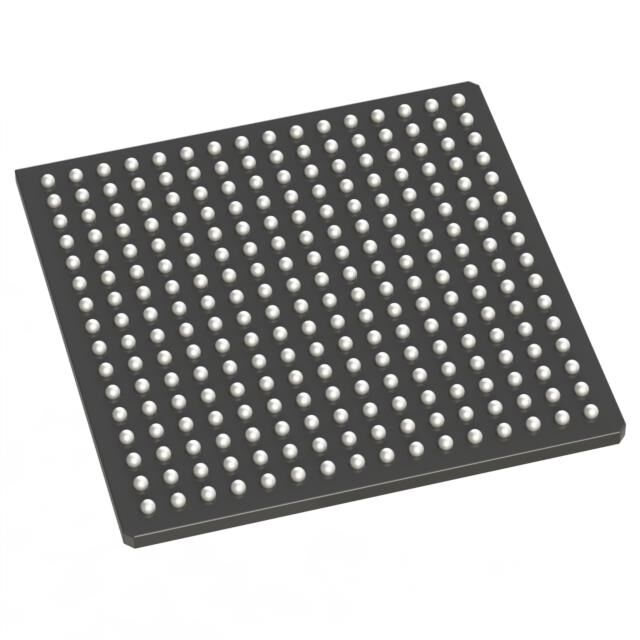

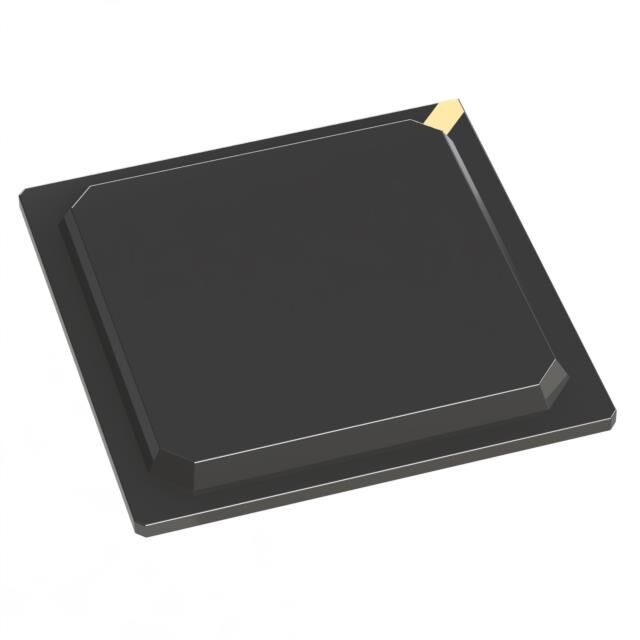

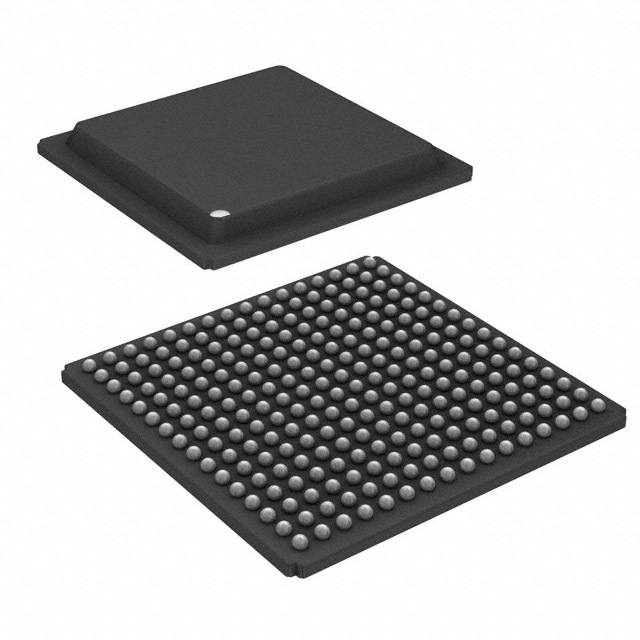

IC MPU MPC8XX 66MHZ 256BGA

Part	Speed	Core Processor	Mounting Type	Co-Processors/DSP	Additional Interfaces	RAM Controllers	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Voltage - I/O	USB	Security Features	Number of Cores/Bus Width	Ethernet	Ethernet	Ethernet [Max]	Ethernet [Min]	Ethernet
Freescale Semiconductor - NXP MPC875CZT66	66 MHz	MPC8xx	Surface Mount	Communications; CPM Security; SEC	HDLC/SDLC I2C IrDA PCMCIA SPI TDM UART/USART	DRAM	-40 °C	100 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)	Cryptography	1 Core 32 Bit	10 Mbps 100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC870VR133	133 MHz	MPC8xx	Surface Mount	Communications CPM		DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)		1 Core 32 Bit			100 Mbps	10 Mbps	(2)
Freescale Semiconductor - NXP MPC875VR133	133 MHz	MPC8xx	Surface Mount	Communications; CPM Security; SEC	HDLC/SDLC I2C IrDA PCMCIA SPI TDM UART/USART	DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)	Cryptography	1 Core 32 Bit	10 Mbps 100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC870VR66	66 MHz	MPC8xx	Surface Mount	Communications CPM		DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)		1 Core 32 Bit			100 Mbps	10 Mbps	(2)
Freescale Semiconductor - NXP MPC875VR66	66 MHz	MPC8xx	Surface Mount	Communications; CPM Security; SEC	HDLC/SDLC I2C IrDA PCMCIA SPI TDM UART/USART	DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)	Cryptography	1 Core 32 Bit	10 Mbps 100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC875VR66	66 MHz	MPC8xx	Surface Mount	Communications; CPM Security; SEC		DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)	Cryptography	1 Core 32 Bit	10 Mbps 100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC870CVR66	66 MHz	MPC8xx	Surface Mount	Communications CPM		DRAM	-40 °C	100 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)		1 Core 32 Bit			100 Mbps	10 Mbps	(2)
Freescale Semiconductor - NXP MPC875ZT66	66 MHz	MPC8xx	Surface Mount	Communications; CPM Security; SEC	HDLC/SDLC I2C IrDA PCMCIA SPI TDM UART/USART	DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)	Cryptography	1 Core 32 Bit	10 Mbps 100 Mbps	10 Mbps
Freescale Semiconductor - NXP MPC870ZT133	133 MHz	MPC8xx	Surface Mount	Communications CPM		DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)		1 Core 32 Bit			100 Mbps	10 Mbps	(2)
Freescale Semiconductor - NXP MPC875ZT133	133 MHz	MPC8xx	Surface Mount	Communications; CPM Security; SEC	HDLC/SDLC I2C IrDA PCMCIA SPI TDM UART/USART	DRAM	0 °C	95 °C	256-BBGA	23	256-PBGA	23	3.3 V	USB 2.0 (1)	Cryptography	1 Core 32 Bit	10 Mbps 100 Mbps	10 Mbps
