202D163 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

FLEX POLY MOLDED PART

Part	Total Length Recovered	Total Length Recovered	Shell Size - Insert	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Material	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Color	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Diameter Supplied	Large Diameter Supplied	Large Recovered Length	Large Recovered Length	Large Recovered Length	Small Recovered Length	Small Recovered Length	Total Length Recovered	Small Recovered Length [x]	Total Length Recovered [x]	Total Length Recovered [x]
TE Connectivity Aerospace, Defense and Marine 202D163-4-60-0-CS5077	103.63 mm	4.08 "	63	28.19 mm	1.11 in	Boot	Polyolefin (PO) Flexible	0.39 "	9.91 mm	Black	1.68 in	42.67 mm	42.67 mm	1.68 in	2.22 in	56.39 mm
TE Connectivity Aerospace, Defense and Marine 202D163-3-72/42-0-CS5501	2.63 in		63	28.19 mm	1.11 in	Boot	Polyolefin (PO) Semi-Rigid	0.39 "	9.91 mm	Black	1.68 in	42.67 mm	42.67 mm	1.68 in		1.42 in	36.07 mm	8.64 mm	0.34 in	66.8 mm
TE Connectivity Aerospace, Defense and Marine 202D163-12-50-0				28.19 mm	1.11 in	Boot	Fluoroelastomer (FKM) Flexible	0.39 "	9.91 mm	Black	1.449 in	36.8 mm	42.67 mm	1.68 in				24.6 mm			0.969 in	2.48 in	62.99 mm
TE Connectivity Aerospace, Defense and Marine 202D163-100-0	103.63 mm	4.08 "	63	28.19 mm	1.11 in	Boot	Polyolefin (PO) Semi-Flexible Halogen Free	0.39 "	9.91 mm	Black	0.87 in	22.1 mm	42.67 mm	1.68 in	2.22 in	56.39 mm

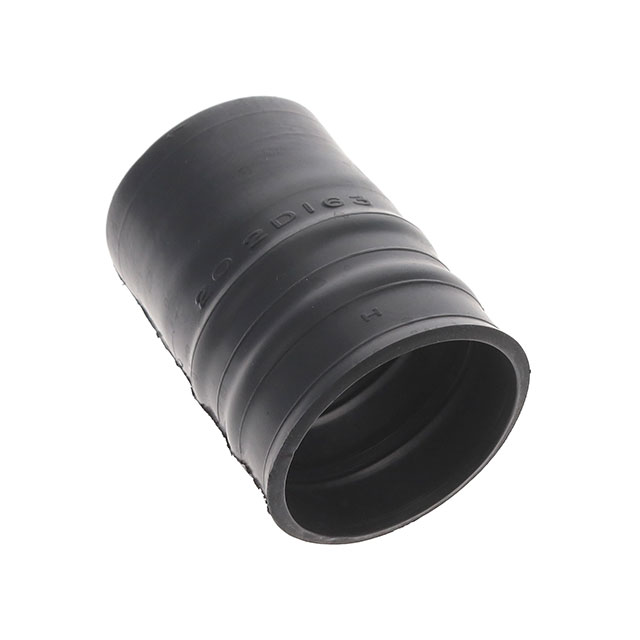

TE Connectivity Aerospace, Defense and Marine 202D163-25-0	103.63 mm	4.08 "	63	28.19 mm	1.11 in	Boot	Elastomer	0.87 "	22.1 mm	Black	1.68 in	42.67 mm	42.67 mm	1.68 in	2.22 in	56.39 mm
TE Connectivity Aerospace, Defense and Marine 202D163-25-07-0	103.63 mm	4.08 "	63	28.19 mm	1.11 in	Boot	Elastomer Fluid Resistant	0.39 "	9.91 mm	Black	1.68 in	42.67 mm	42.67 mm	1.68 in	2.22 in	56.39 mm
TE Connectivity Aerospace, Defense and Marine 202D163-100/180-0	103.63 mm	4.08 "	63	28.19 mm	1.11 in	Boot	Polyolefin (PO) Semi-Flexible Halogen Free	0.39 "	9.91 mm	Black	0.87 in	22.1 mm	42.67 mm	1.68 in	2.22 in	56.39 mm
TE Connectivity Aerospace, Defense and Marine 202D163-25/225-0	103.63 mm	4.08 "	63	28.19 mm	1.11 in	Boot	Elastomer Fluid Resistant	0.39 "	9.91 mm	Black	1.68 in	42.67 mm	42.67 mm	1.68 in	2.22 in	56.39 mm
