1096-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

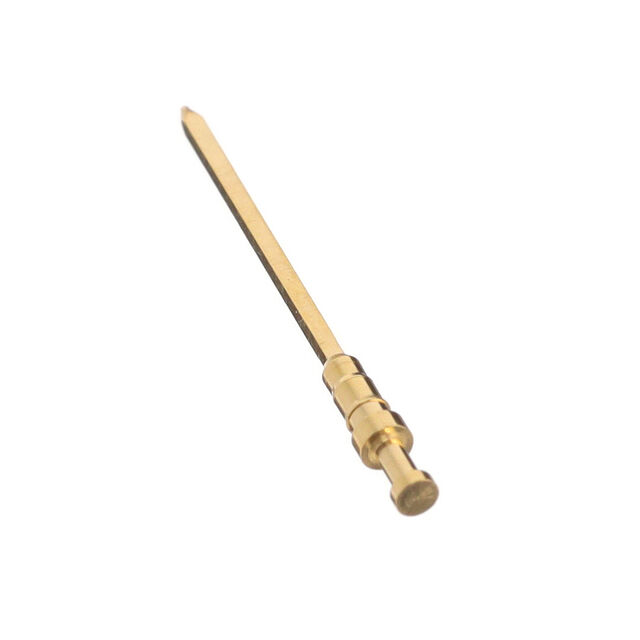

TERM TURRET PIN
| Part | Termination | Length - Above Board [x] | Length - Above Board [x] | Contact Material | Insulation | Contact Finish Thickness | Contact Finish Thickness | Length - Overall | Length - Overall | Terminal Type | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Number of Turrets |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Barbed Press-Fit Wire Wrap | 0.131 in | 3.33 mm | Brass Alloy | Non-Insulated | 200 Áin | 5.08 Ám | 20.14 mm | 0.793 " | Double End Pin | 0.058 in | 1.47 mm | 0.662 " | 16.81 mm | Through Hole | Tin | 1.45 mm | 0.057 in | 0.072 " | 1.83 mm | Single |
 Mill-Max Manufacturing Corp. | Barbed Press-Fit Wire Wrap | 0.131 in | 3.33 mm | Brass Alloy | Non-Insulated | 10 Áin | 0.25 Ám | 20.14 mm | 0.793 " | Double End Pin | 0.058 in | 1.47 mm | 0.662 " | 16.81 mm | Through Hole | Gold | 1.45 mm | 0.057 in | 0.072 " | 1.83 mm | Single |
Mill-Max Manufacturing Corp. | Barbed Press-Fit Wire Wrap | 0.131 in | 3.33 mm | Brass Alloy | Non-Insulated | 20 µin | 0.51 µm | 20.14 mm | 0.793 " | Double End Pin | 0.058 in | 1.47 mm | 0.662 " | 16.81 mm | Through Hole | Gold | 1.45 mm | 0.057 in | 0.072 " | 1.83 mm | Single |
Mill-Max Manufacturing Corp. | Barbed Press-Fit Wire Wrap | 0.131 in | 3.33 mm | Brass Alloy | Non-Insulated | 200 Áin | 5.08 Ám | 20.14 mm | 0.793 " | Double End Pin | 0.058 in | 1.47 mm | 0.662 " | 16.81 mm | Through Hole | Tin-Lead | 1.45 mm | 0.057 in | 0.072 " | 1.83 mm | Single |
