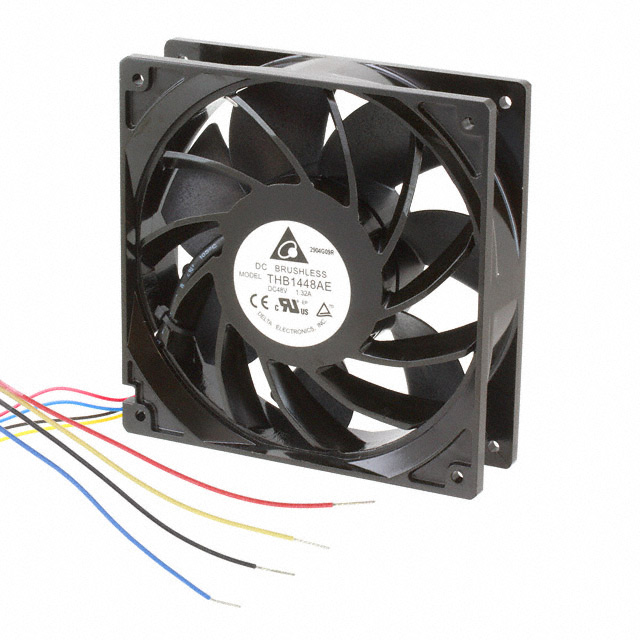

THB1448 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC FAN AXIAL BALL BEARING 48V 30V TO 60V 325.9CFM 66.8DB 140 X 140 X 38MM
| Part | Lifetime @ Temp. | Material - Blade | Current Rating (Amps) | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Bearing Type | Air Flow | Air Flow | Fan Type | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Voltage - Rated | Width [y] | Features | Static Pressure | Static Pressure | Termination | Power (Watts) | Approval Agency | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | Plastic | 1.1 A | Aluminum | 36 VDC | 60 V | Ball | 9.13 m³/min | 325.9 CFM | Tubeaxial | 6100 RPM | 70 °C | -10 °C | 66.8 dB(A) | 48 VDC | 38 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 411 Pa | 1.65 in H2O | 4 Wire Leads | 52.8 W | CE cURus TUV | 1.3 lbs | 600 g |
