JL05-2A1 Series
Manufacturer: JAE Electronics
Beta
⌘K

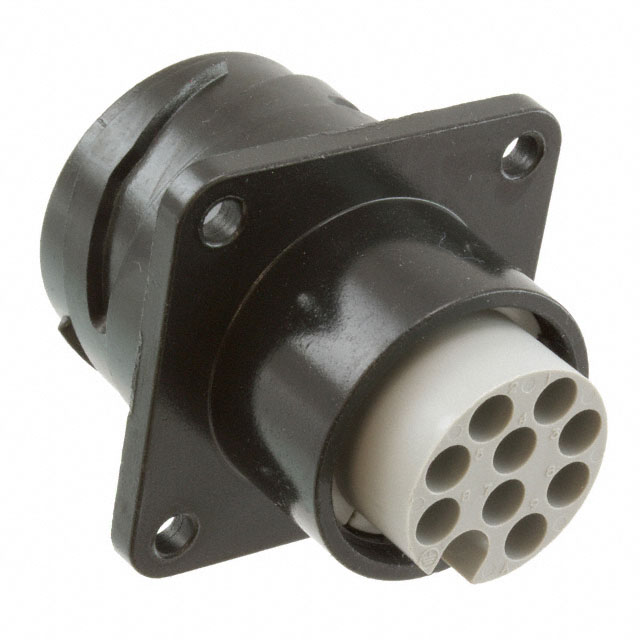

CONN RCPT HSG FMALE 10POS PNL MT
| Part | Contact Size | Mounting Type | Number of Positions | Fastening Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Shielding | Material Flammability Rating | Contact Shape | Shell Size - Insert | Contact Type | Housing Color | Shell Material | Insert Material | Type | Connector Type | Mounting Feature | Shell Finish | Note | Shell Size - Insert [Min] | Shell Size - Insert [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 16 | Panel Mount | 10 | Bayonet Lock | IP67 - Dust Tight Waterproof | -55 C | 125 °C | N (Normal) | Unshielded | UL94 V-0 | Circular | 18-1 | Crimp | Black | Aluminum | Synthetic Resin | For Female Sockets | Receptacle Housing | Flange | Zinc | Contacts Not Included | ||
JAE Electronics | |||||||||||||||||||||||
JAE Electronics | |||||||||||||||||||||||
JAE Electronics | |||||||||||||||||||||||

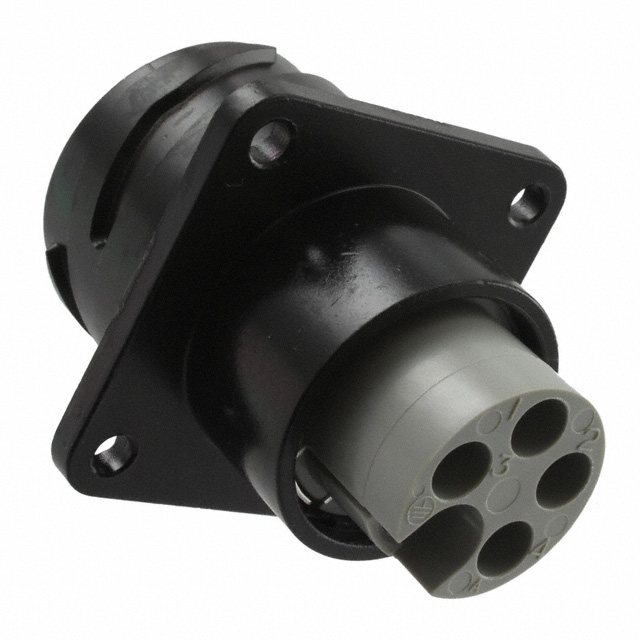

 JAE Electronics | 12 | Panel Mount | 5 | Bayonet Lock | IP67 - Dust Tight Waterproof | -55 C | 125 °C | N (Normal) | Unshielded | UL94 V-0 | Circular | Crimp | Black | Aluminum | Synthetic Resin | For Female Sockets | Receptacle Housing | Flange | Zinc | Contacts Not Included | 18 | 11 | |
 JAE Electronics | 16 | Panel Mount | 10 | Bayonet Lock | IP67 - Dust Tight Waterproof | -55 C | 125 °C | N (Normal) | Unshielded | UL94 V-0 | Circular | 18-1 | Crimp | Black | Aluminum | Synthetic Resin | For Male Pins | Receptacle Housing | Flange | Zinc | Contacts Not Included | ||
 JAE Electronics | 12 | Panel Mount | 5 | Bayonet Lock | IP67 - Dust Tight Waterproof | -55 C | 125 °C | N (Normal) | Unshielded | UL94 V-0 | Circular | Crimp | Black | Aluminum | Synthetic Resin | For Male Pins | Receptacle Housing | Flange | Zinc | Contacts Not Included | 18 | 11 | |
JAE Electronics | 20 | Panel Mount | 19 | Bayonet Lock | IP67 - Dust Tight Waterproof | -55 C | 125 °C | N (Normal) | Unshielded | UL94 V-0 | Circular | 18-19A | Crimp | Black | Aluminum | Synthetic Resin | For Female Sockets | Receptacle Housing | Flange | Zinc | Contacts Not Included | ||
JAE Electronics | 20 | Panel Mount | 19 | Bayonet Lock | IP67 - Dust Tight Waterproof | -55 C | 125 °C | N (Normal) | Unshielded | UL94 V-0 | Circular | 18-19A | Crimp | Black | Aluminum | Synthetic Resin | For Male Pins | Receptacle Housing | Flange | Zinc | Contacts Not Included |
