MP-1919 Series

Catalog

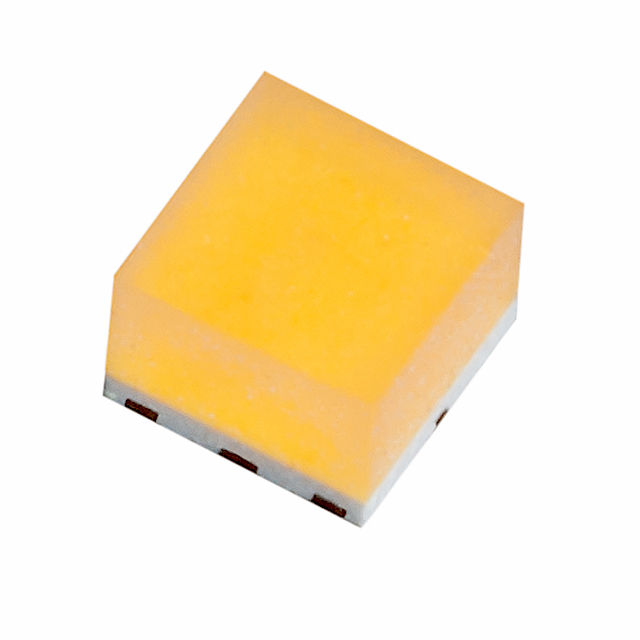

LED XNOVA CUBE WHITE 5000K 1919

Part	Thermal Resistance of Package	CRI (Color Rendering Index)	Current - Max [Max]	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test	Viewing Angle	Lumens/Watt @ Current - Test	Package / Case	Color	CCT (K)
Luminus Devices Inc. MP-1919-2100-50-80	8 °C/W	80	240 mA	150 mA	0.075 "	0.075 "	1.9 mm	1.9 mm	1.25 mm	0.049 in	Surface Mount	1919	6.2 V	120 lm	170 °	129 lm/W	0707 (1919 Metric)	Cool White	5000 K
Luminus Devices Inc. MP-1919-2101-27-90	8 °C/W	90	240 mA	150 mA	0.075 "	0.075 "	1.9 mm	1.9 mm	1.25 mm	0.049 in	Surface Mount	1919	6.2 V	84 lm	170 °	90 lm/W	0707 (1919 Metric)	Warm White	2700 K
Luminus Devices Inc. MP-1919-2101-40-80	8 °C/W	80	240 mA	150 mA	0.075 "	0.075 "	1.9 mm	1.9 mm	1.25 mm	0.049 in	Surface Mount	1919	6.2 V	133 lm	170 °	143 lm/W	0707 (1919 Metric)	Neutral White	4000 K
Luminus Devices Inc. MP-1919-2100-27-80	8 °C/W	80	240 mA	150 mA	0.075 "	0.075 "	1.9 mm	1.9 mm	1.25 mm	0.049 in	Surface Mount	1919	6.2 V	108 lm	170 °	116 lm/W	0707 (1919 Metric)	Warm White	2700 K
Luminus Devices Inc. MP-1919-2101-40-90	8 °C/W	90	240 mA	150 mA	0.075 "	0.075 "	1.9 mm	1.9 mm	1.25 mm	0.049 in	Surface Mount	1919	6.2 V	118 lm	170 °	127 lm/W	0707 (1919 Metric)	Neutral White	4000 K
Luminus Devices Inc. MP-1919-2101-35-90	8 °C/W	90	240 mA	150 mA	0.075 "	0.075 "	1.9 mm	1.9 mm	1.25 mm	0.049 in	Surface Mount	1919	6.2 V	115 lm	170 °		0707 (1919 Metric)	Warm White	3500 K
