OSTVZ Series

Catalog

TERM BLK HEADER 23POS GREEN

Part	Color	Features	Number of Levels	Rear Panel Wire Connection	Rear Panel Wire Connection	Rear Panel Wire Connection	Front Panel Wire Connection	Current - UL	Voltage - UL	Width	Width	Positions Per Level	Panel Mount Type	Pitch [x]	Pitch [x]	Width [y]	Width [y]	Width [x]	Width [x]
On Shore Technology Inc. OSTVZ235050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	7 A	300 V	5.407 in	137.34 mm	23	Screw Mount - Front Flange	0.2 in	5.08 mm
On Shore Technology Inc. OSTVZ045050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	7 A	300 V			4	Screw Mount - Front Flange	0.2 in	5.08 mm	1.607 in	40.82 mm
On Shore Technology Inc. OSTVZ245050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	7 A	300 V				Screw Mount - Front Flange	0.2 in	5.08 mm	5.607 in	142.42 mm
On Shore Technology Inc. OSTVZ153050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	10 A	300 V			15	Screw Mount - Front Flange	0.15 in	3.81 mm			71.56 mm	2.817 in
On Shore Technology Inc. OSTVZ233050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	10 A	300 V			23	Screw Mount - Front Flange	0.15 in	3.81 mm	4.017 in	102.03 mm

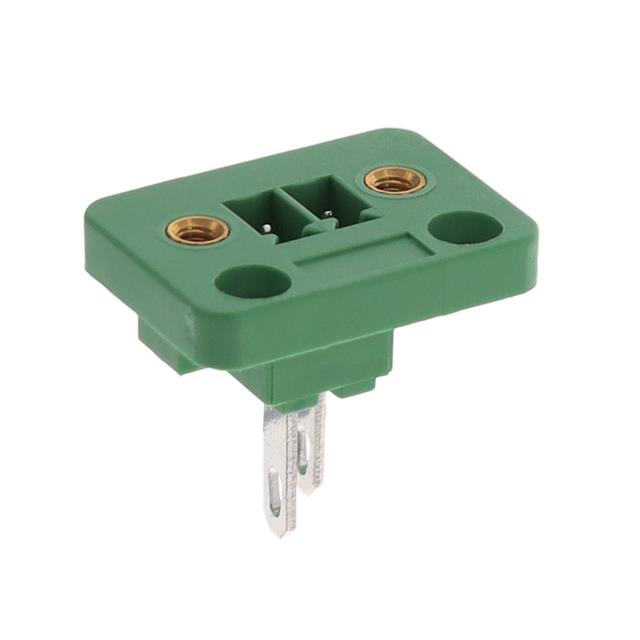

On Shore Technology Inc. OSTVZ023050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	10 A	300 V			2	Screw Mount - Front Flange	0.15 in	3.81 mm	0.867 "	22.01 mm
On Shore Technology Inc. OSTVZ205050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	7 A	300 V			20	Screw Mount - Front Flange	0.2 in	5.08 mm	4.807 in	122.1 mm
On Shore Technology Inc. OSTVZ103050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	10 A	300 V	2.067 in	52.49 mm	10	Screw Mount - Front Flange	0.15 in	3.81 mm
On Shore Technology Inc. OSTVZ073050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	10 A	300 V			7	Screw Mount - Front Flange	0.15 in	3.81 mm			41.06 mm	1.617 in
On Shore Technology Inc. OSTVZ053050	Green	Threaded Mating Lock	1	0.11 in	Quick Connect Solder Eyelet	2.8 mm	Header Male Pins	10 A	300 V			5	Screw Mount - Front Flange	0.15 in	3.81 mm			33.44 mm	1.317 "
