1776113 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
2P,3.81MM,SIDE ENTRY,HIGH TMP
| Part | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Screw Material - Plating | Current | Housing Material | Mating Orientation | Voltage | Wire Termination | Contact Material - Plating | Color | Positions Per Level | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

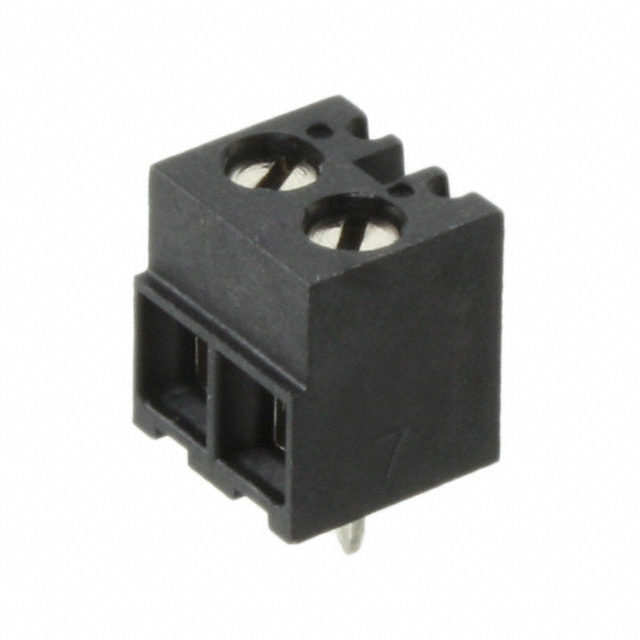

 TE Connectivity Raychem Cable Protection | Through Hole | 28 AWG | 16 AWG | 1 | Copper Alloy - Nickel Plated | 12 A | Polyamide (PA) Nylon | Horizontal with Board | 150 V | Screw - Rising Cage Clamp | Copper Alloy - Tin Plated | Black | 2 | Copper Alloy - Nickel Plated | -40 °C | 110 °C | 0.15 in | 3.81 mm |
TE Connectivity Raychem Cable Protection | Through Hole | 28 AWG | 16 AWG | 1 | Copper Alloy - Nickel Plated | 12 A | Polyamide (PA) Nylon | Horizontal with Board | 150 V | Screw - Rising Cage Clamp | Copper Alloy - Tin Plated | Black | 7 | Copper Alloy - Nickel Plated | -40 °C | 110 °C | 0.15 in | 3.81 mm |

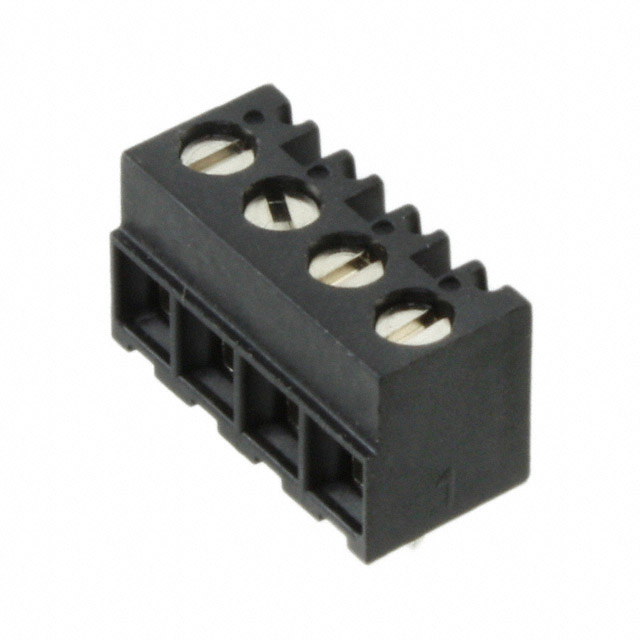

 TE Connectivity Raychem Cable Protection | Through Hole | 28 AWG | 16 AWG | 1 | Copper Alloy - Nickel Plated | 12 A | Polyamide (PA) Nylon | Horizontal with Board | 150 V | Screw - Rising Cage Clamp | Copper Alloy - Tin Plated | Black | 4 | Copper Alloy - Nickel Plated | -40 °C | 110 °C | 0.15 in | 3.81 mm |
