PPTC072 Series

Catalog

CONN HDR 14POS 0.1 TIN PCB

Part	Insulation Material	Contact Material	Contact Shape	Number of Positions	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Current Rating (Amps)	Connector Type	Contact Finish - Post	Insulation Height	Insulation Height	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

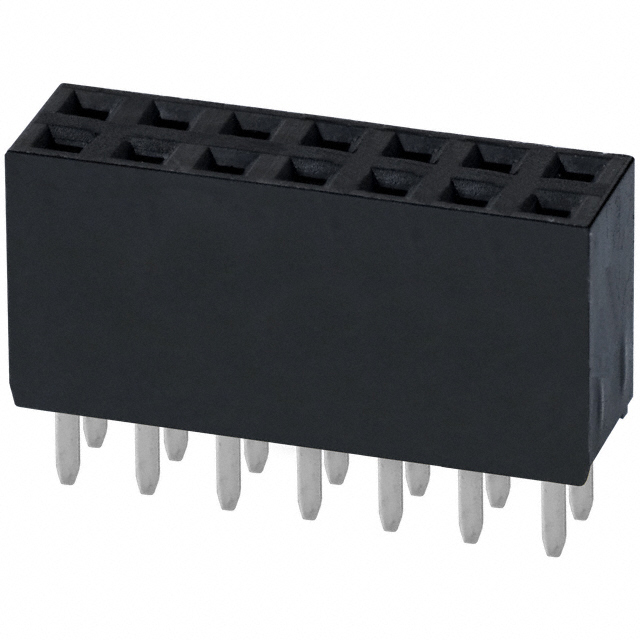

Sullins Connector Solutions PPTC072LFBN-RC	Polyester	Phosphor Bronze	Square	14	Black	0.1 in	2.54 mm	0.126 "	3.2 mm	Push-Pull	UL94 V-0	All	Through Hole	250 V	-40 C	105 ░C	2	3 A	Header	Tin	0.335 "	8.51 mm	Female Socket	Solder	0.1 "	2.54 mm

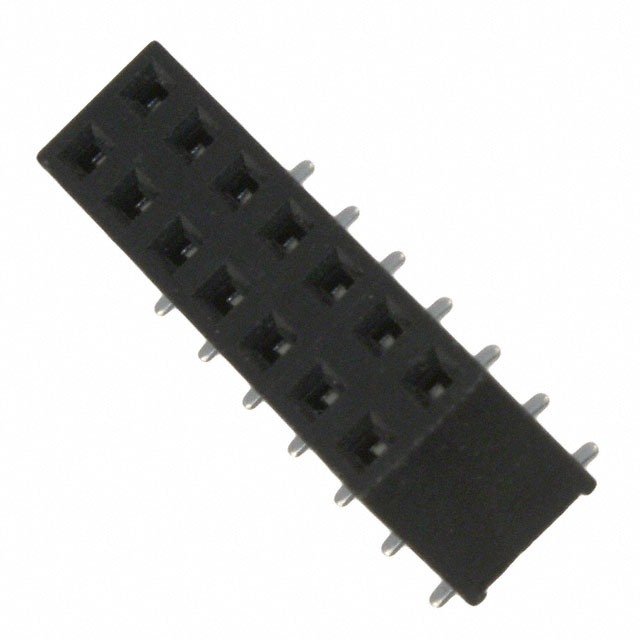

Sullins Connector Solutions PPTC072KFMS	Polyester	Phosphor Bronze	Square	14	Black	0.1 in	2.54 mm			Push-Pull	UL94 V-0	All	Surface Mount	250 V	-40 C	125 °C	2	3 A	Header	Tin		7.6 mm	Female Socket	Solder	0.1 "	2.54 mm	0.299 "

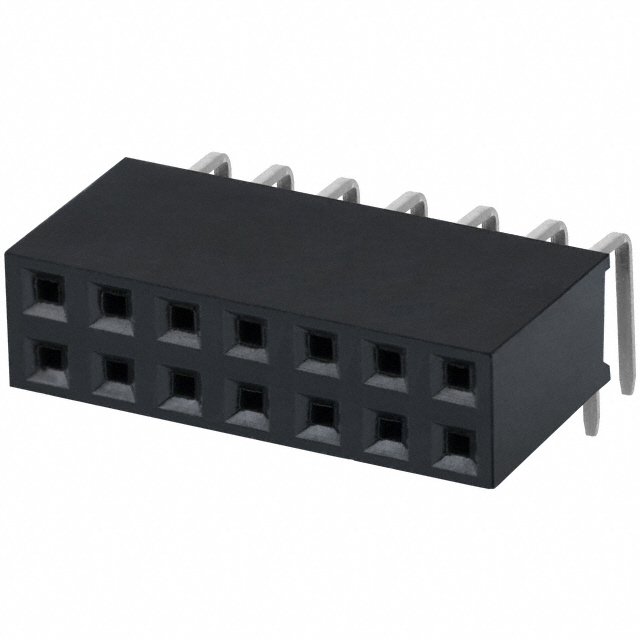

Sullins Connector Solutions PPTC072LJBN-RC	Polyester	Phosphor Bronze	Square	14	Black	0.1 in	2.54 mm			Push-Pull	UL94 V-0	All	Right Angle Through Hole	250 V	-40 C	105 ░C	2	3 A	Header	Tin			Female Socket	Solder	0.1 "	2.54 mm	0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPTC072LFBN	Polyester	Phosphor Bronze	Square	14	Black	0.1 in	2.54 mm	0.126 "	3.2 mm	Push-Pull	UL94 V-0	All	Through Hole	250 V	-40 C	105 ░C	2	3 A	Header	Tin	0.335 "	8.51 mm	Female Socket	Solder	0.1 "	2.54 mm
