M83-LMT1M Series

Catalog

PIN HEADER, WIRE-TO-BOARD, 2 MM, 3 ROWS, 60 CONTACTS, THROUGH HOLE, DATAMATE J-TEK M83-LM SERIES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Voltage Rating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Type	Contact Material	Mounting Type	Shrouding	Insulation Material	Features	Style	Material Flammability Rating	Current Rating (Amps)	Termination	Number of Rows [custom]	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Connector Type

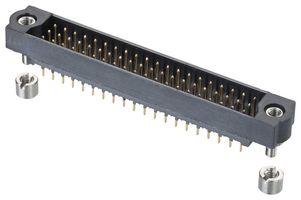

Harwin Inc. M83-LMT1M2N60-0000-000	-55 C	125 °C	6.1 mm	0.24 in	2 mm	0.079 in	Gold	120 VDC	0.079 "	2 mm	Threaded	All	60	29.5 µin	0.75 µm	Male Pin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	UL94 V-0	2.2 A	Solder	3	Circular	0.126 "	3.2 mm	Black	Header

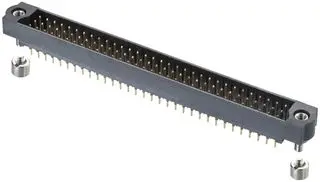

Harwin Inc. M83-LMT1M2N96-0000-000	-55 C	125 °C	6.1 mm	0.24 in	2 mm	0.079 in	Gold	120 VDC	0.079 "	2 mm	Threaded	All	96	29.5 µin	0.75 µm	Male Pin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	UL94 V-0	2.2 A	Solder	3	Circular	0.126 "	3.2 mm	Black	Header

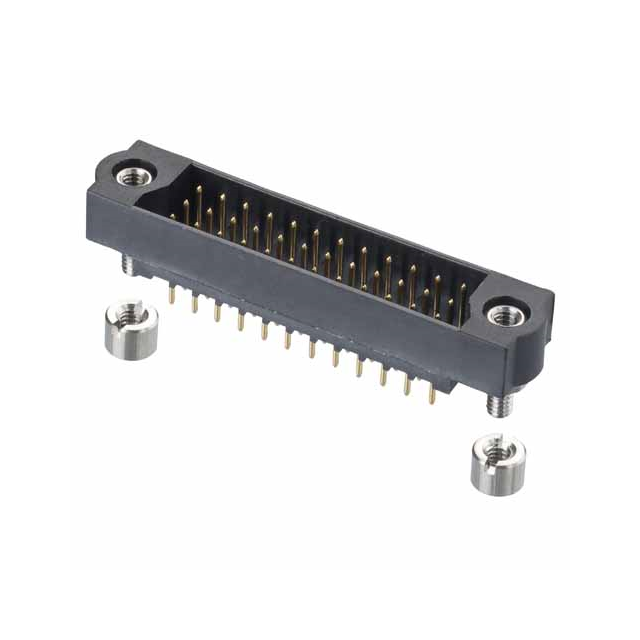

Harwin Inc. M83-LMT1M2N54-0000-000	-55 C	125 °C	6.1 mm	0.24 in	2 mm	0.079 in	Gold	120 VDC	0.079 "	2 mm	Threaded	All	54	29.5 µin	0.75 µm	Male Pin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	UL94 V-0	2.2 A	Solder	3	Circular	0.126 "	3.2 mm	Black	Header

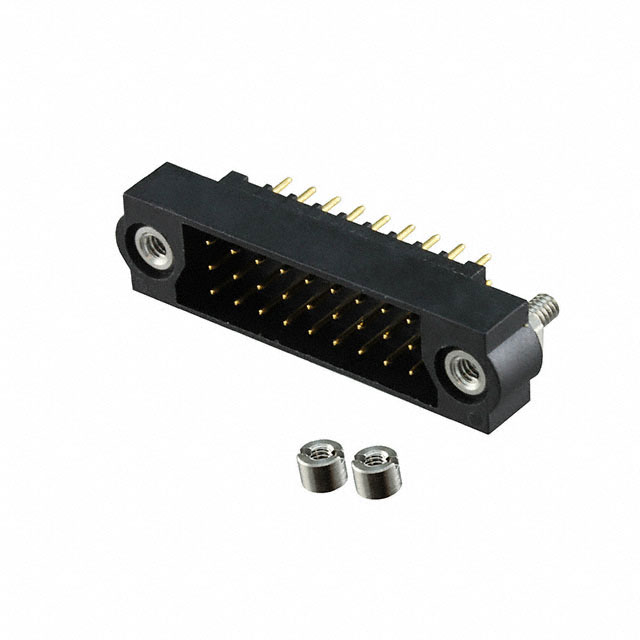

Harwin Inc. M83-LMT1M2N27-0000-000	-55 C	125 °C	6.1 mm	0.24 in	2 mm	0.079 in	Gold	120 VDC	0.079 "	2 mm	Threaded	All	27	29.5 µin	0.75 µm	Male Pin	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Mating Flange Mounting Flange Mounting Hardware	Board to Board Cable	UL94 V-0	2.2 A	Solder	3	Circular	0.126 "	3.2 mm	Black	Header
